Cube Dial Somerset – GAUDIUM SUB SOLE . SUNDIALS . MEDIEVAL TO MODERN

BRYMPTON d’EVERCY . SOM . Cube Dial with Ball Finial

Published on February 20, 2023February 21, 2023 by Rolling HarbourLeave a comment

BRYMPTON d’EVERCY . SOMERSET . CUBE DIAL with BALL FINIAL

Brympton d’Evercy is a fine Somerset country house with a long history of intertwined families down the ages. For more on the house & grounds, see HERE. The chapel of St Andrew has scratch dials that are featured HERE. The estate is a mere 2m W of the clatter of Yeovil yet hidden away in its own parkland, and best reached by map reading, satnav or luck. 50.9361 / -2.6847 / ST519154

CUBE DIAL (GVII)

The long (75m) balustraded south terrace looks out over parkland with a small lake. The dial dates to mid-C19, probably added ± 1860 as part of the design for the terrace building project. If the dial is older, it must have been relocated. HE describes the ashlar retaining wall with chamfered plinth, capped with a stone balustrade with intermediate piers on which are set a variety of urns and other ornaments, and in the centre of the long western section a block sundial with ball finial, on which is inscribed LAT 50-56, 17.30, having sheet metal gnomons, 2 of which are broken. The 4 gnomons are shown together further down this page.

SOUTH

The motto on the S face of the dial reads PEREUNT ET IMPUTANTUR, which Gatty gives as ‘they perish and are reckoned’. Its original form as a Martial epigram directly references the sun’s involvement in this process.

WEST

NORTH

EAST

GNOMONS

THE BOOK OF SUN-DIALS . MRS ALFRED GATTY . MDCCC

GSS Category: Cube Dial; Multiple Dial

All photos: Keith Salvesen

MUDFORD . SOMERSET . ST MARY (2) – 2 Scratch Dials

Published on December 20, 2022December 22, 2022 by Rolling HarbourLeave a comment

ST MARY . MUDFORD . SOMERSET

GRADE I † Mostly early C14 and C15. Built with local stone: lias and ham. A fine C17 cube dial, 2 slightly unrewarding scratch dials, impressive gargoyles. A complete set of 5 bells dated 1582, 1621, 1623, 1664 and 1666, all by Purdue family. Some pews have graffiti from C17 on. 3m N of Yeovil. 50.9773 / -2.6086 / ST573199

I have previously posted about St Mary with the emphasis on the splendid CUBE DIAL high on the apex of the E end. I mentioned 2 scratch dials but because they fall into the separate Medieval Dial category I am giving them some more attention here.

MUDFORD: TWO SCRATCH DIALS

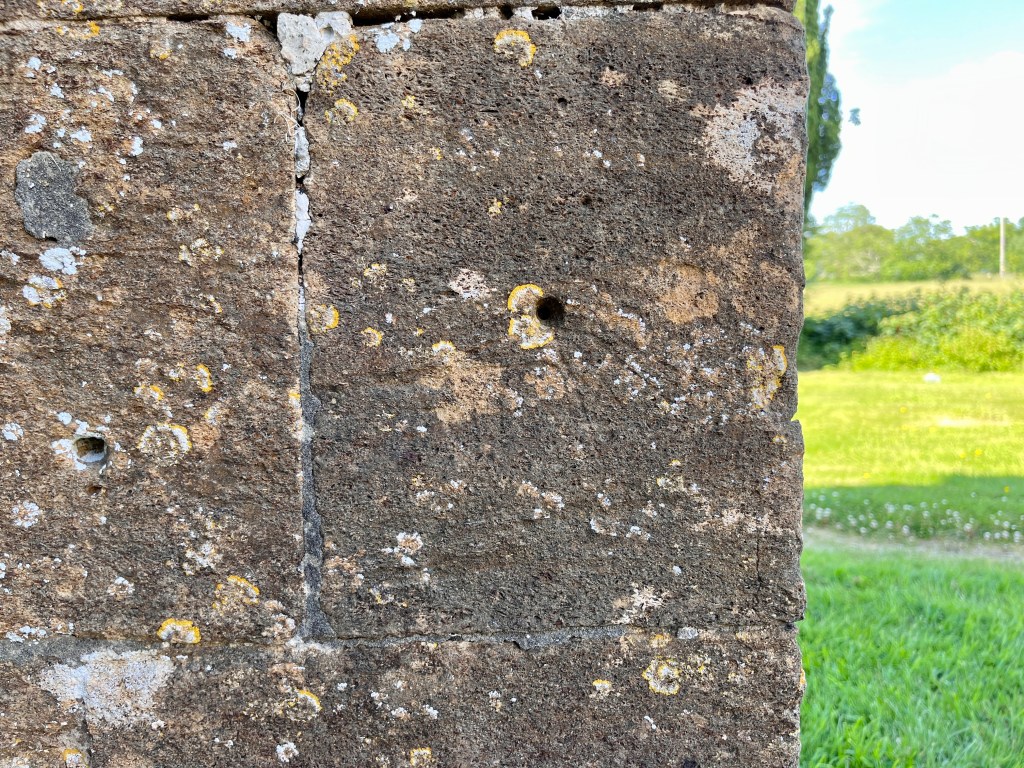

The two dials are on the inner face of the buttress at the E end of the church, one above the other – a less than optimal position. They were obviously relocated and incorporated during expansion / restoration and used as quoin stones for the buttress, though pointless as dials where they are now. The stones themselves are similar, but it seems unlikely that the 2 dials were adjacent before being moved.

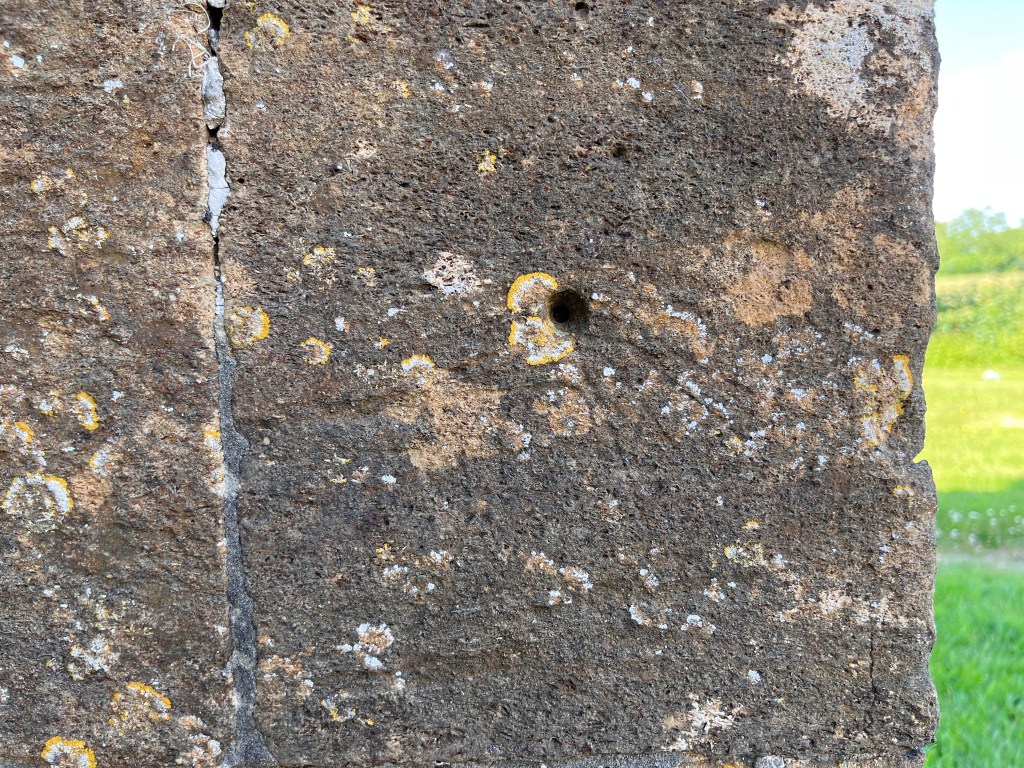

Dial 1 is very simple: a style hole with 2 lines descending, the noon line and 1pm. A rod gnomon would very clearly mark the noon part of the day, perhaps indicating that Mass was not quite yet… or that it had been missed…

There is a similar 2-line dial at BROADMAYNE Dorset, where the 2 lines are at either side of the vertical (ie at 11 and 1), cut so that ‘noon’ is in effect the space between them. At COMPTON PAUNCEFOOT there is a large dial on the facade with 3 lines: noon and one each side.

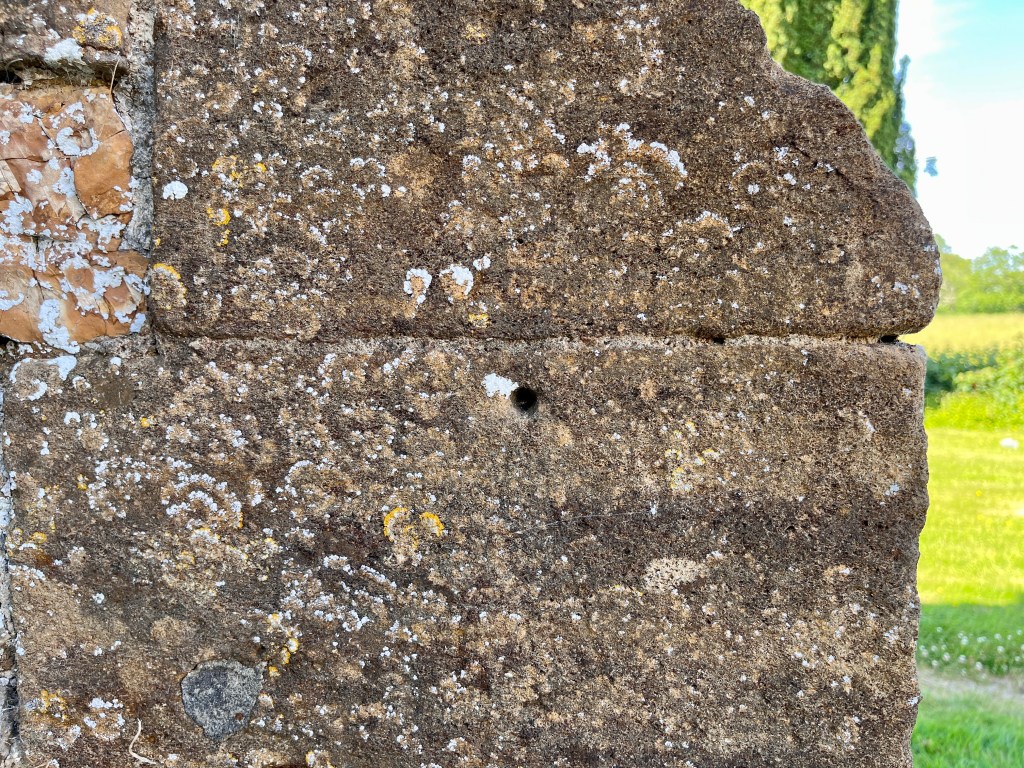

Dial 2 has 4 clear lines radiating from the style hole. These are E of the vertical, marking roughly 1 to 4 (there is no noon line). On both dials there are faint hints of other lines now eroded.

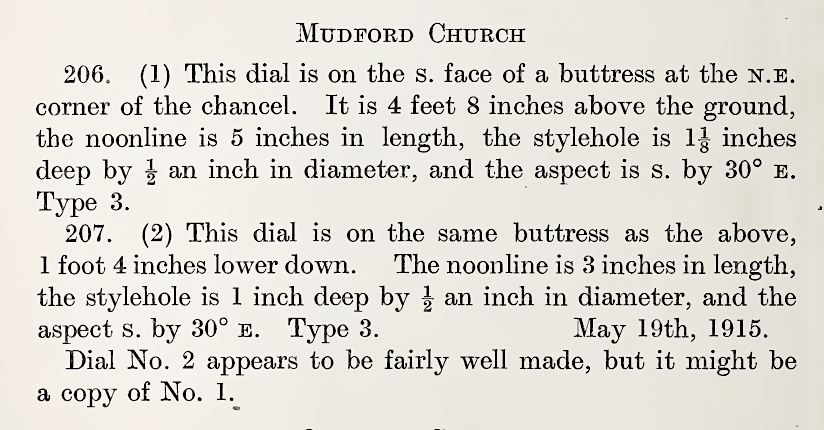

DEH recorded the Mudford dials in May 2015 during a tour of several churches in the area

CUBE DIAL

GSS Category: Scratch Dial

All photos: Keith Salvesen

TINTINHULL . SOMERSET . ST MARGARET OF ANTIOCH – Triple Polar Scaphe Dial

Published on November 3, 2022December 11, 2022 by Rolling HarbourLeave a comment

St Margaret of Antioch . Tintinhull . Somerset

GRADE I † C13 et seq, on early C12 site. Gradual development but (unusually) with little obvious C19 work BHO. Good C16 bench ends. S porch built c1440, originally thatched, with the cube sundial added later. The scratch dials of St Margaret will be written up separately from this unusual dial that, in fact, is not strictly cubic. 5m NW of Yeovil; just S of dread A303. 50.9746 / -2.7156 / ST498197

St Margaret of Antioch . Tintinhull . Somerset – Scaphe Sundial

ADDENDUM 4.11.22

I wrote this piece without access to the BSS dial records, temporarily unavailable online. I had originally described this dial rather broadly as a cube, aware that it wasn’t quite right. Having now got back into the archive, I am better informed (if not wiser). Some of the points I raise below are clarified. Here is the official entry:

There are 3 polar scaphe dials on the porch gable. Possibly C17 or C18. The dial probably showed all hours of sunlight when correctly installed. Now the orientation is incorrect, the polar axis points East and the dial is shaded by a yew tree. The stone is heavily lichened.

DIAL

The large block of stone cut as a sundial is balanced (as it seems) on the end of the S porch roof. Its usefulness as a dial nowadays is reduced by it being partly obscured by the shadows of nearby trees. I have not seen similar dials in England but I believe there are a few in Scotland.

I originally confessed that I had no idea how this dial might have worked in practice, nor could I comment on the design, nor suggest how many dials (3?) or even ‘shadow casting edges’ there are. John Foad BSS has kindly marked up 2 images which help to understand the way the dial functioned.

GSS Category: Polar Dial; Scaphe Dial; Scaphe Sundial; Multiple Dial

All photos: Keith Salvesen; thanks to John Foad for clarifying the design

MUDFORD . SOMERSET . ST MARY – Cube Dial & 2 Scratch Dials

Published on July 19, 2022July 19, 2022 by Rolling HarbourLeave a comment

ST MARY . MUDFORD . SOMERSET

CUBE DIAL

C17 cuboid sundial as finials to gable coping HE

ASPECTS SE & SW

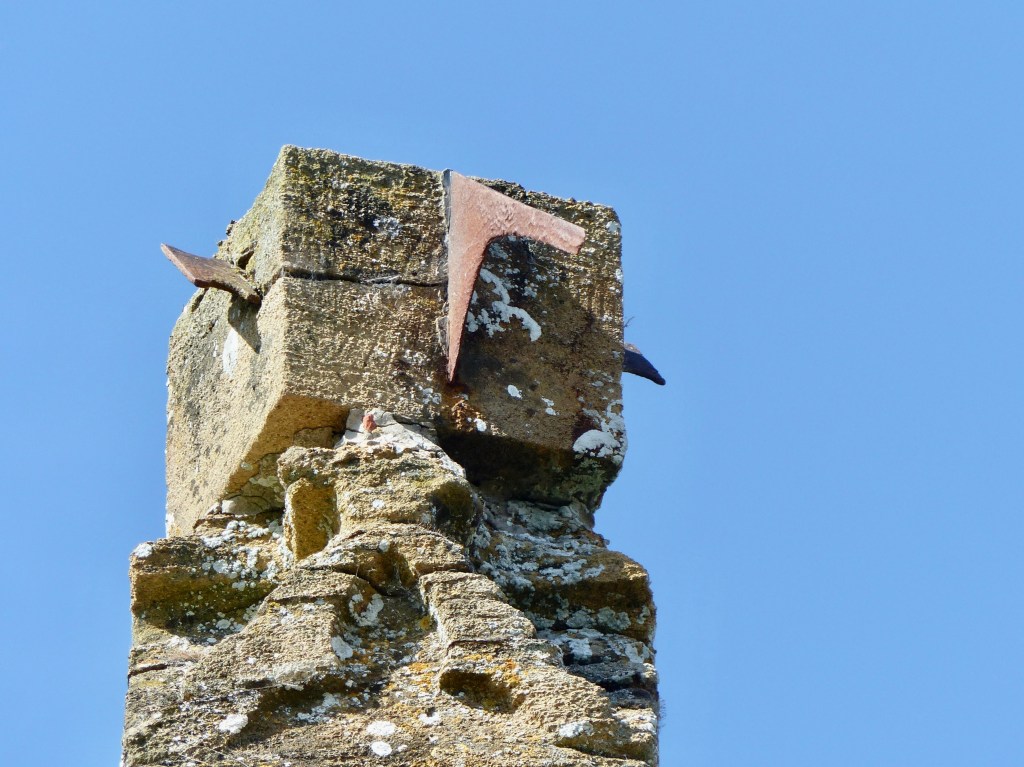

The SE face has a large gnomon inserted vertically into almost the whole depth of the cube. There are 4 (possibly 5) faint lines LHS that mark the morning’s progress. The SW face is (now?) plain, with an angled blade top R at roughly 45º.

ASPECTS SE & NE

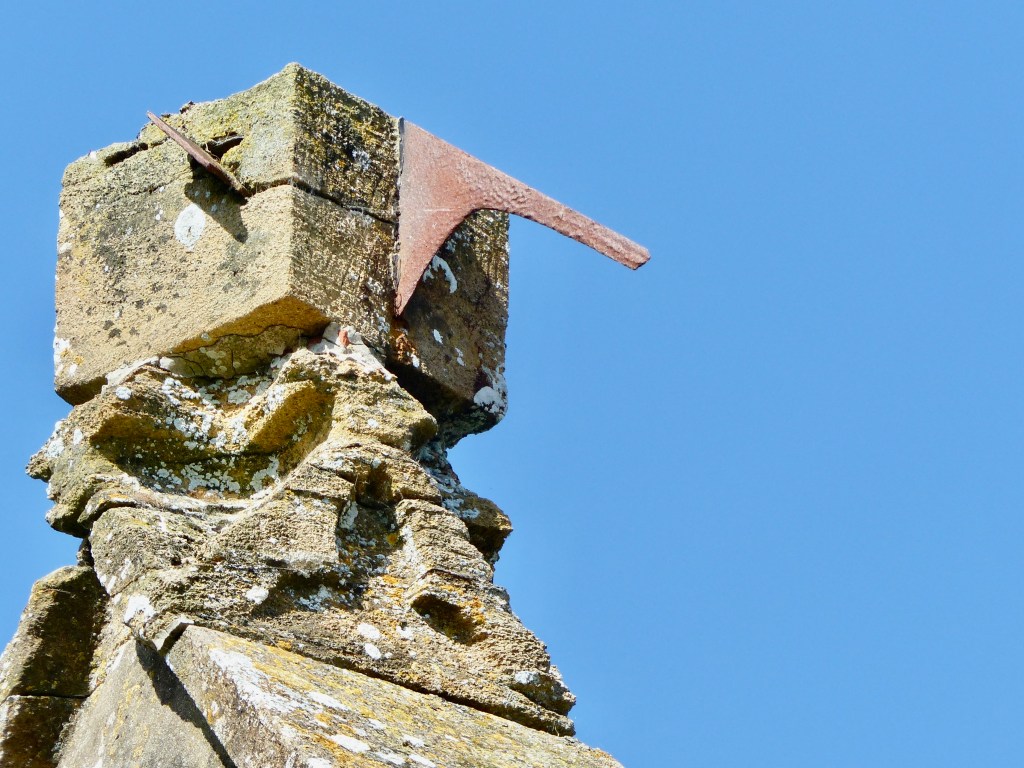

The NE face has a blade gnomon at much the same angle as one the SW face. There’s plenty of lichen and no detectable marks.

ASPECTS NE & NW

The ‘back’ of the cube – the NW face – has no gnomon, but there are holes suggesting the location of one. No dial lines visible.

NOTE: It is almost impossible to get satisfactory photographs of all the faces of a cube dial. Two will always be in shade. Perhaps I need to go back at a different time of day. Or year.

MUDFORD: TWO SCRATCH DIALS

The two dials are on the inner face of the buttress at the E end of the church, one above the other – a less than optimal location. Dial 1 is very simple: a style hole with 2 lines descending either side of the vertical, in effect making the noon line the space between them. Dial 2 has 4 clear lines radiating from the style hole. These are E of the vertical, marking roughly 1 to 4 (there is no noon line). On both dials there are faint hints of other lines now eroded.

DEH recorded the Mudford dials in May 2015

GSS Category: Cube Dial; Scratch Dial

All photos: Keith Salvesen
