ST ANDREW . BRYMPTON . SOM

GRADE I † C13 origins, mainly C14 / C15; C19 restoration. Set in the grounds of an historic house Brympton D’Evercy and adorned by an unusual (striking?) bell turret. The remnants of a lost medieval village. A mere 2m W of Yeovil yet hidden away in its own parkland, and best reached by map reading, satnav or luck. 50.9359 / -2.6856 / ST519153

DIALS

St Andrew has 2 dials, one on each of the paired corner buttresses of the S transept (HE notes only one). There is a plausible dial fragment on the buttress on the W end of the nave.

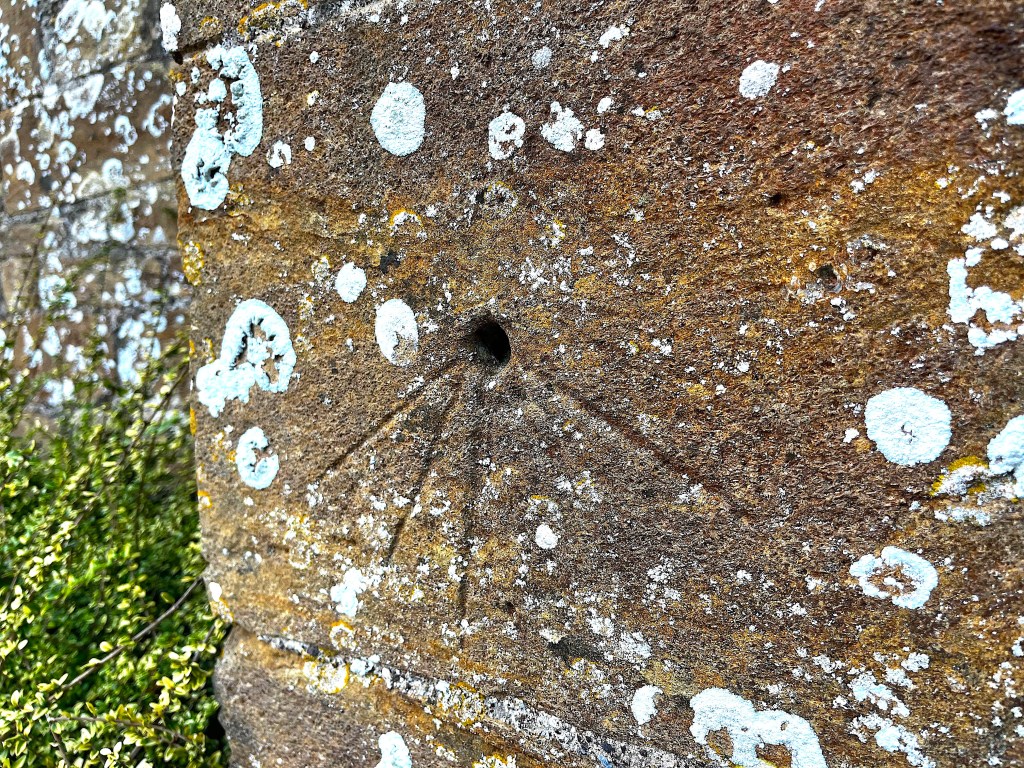

DIAL 1

DEH visited St Andrew in July 1915 and recorded: 189. (2) This dial is on a buttress at the s.e. corner of the s. transept, at a height of 4 feet 1 inch above the ground. The noonline is 5 inches in length, the stylehole is 1 1/4 inches deep by 3/8 of an inch in diameter, and the aspect is s. by 15° e. Type 3.

There are 4 clear lines and one less so. As judged from the noon line, the dial is slightly offset. There is a faintest hint of a line to the right of the noon line, which would make design sense; or perhaps for some reason that area remained blank (and see Dial 2). The strong line mid-afternoon may indicate that the important Mass at St Andrew was none.

DIAL 2

DEH: 188. (1) This dial is on a buttress at the s.w. corner of the s. transept, at a height of 4 feet 11 inches above the ground. The noonline is 3 inches in length, the stylehole is 2 1/4 inches deep by 3/4 of an inch in diameter, and the aspect is s. by 10° e. Type 5c.

The dense covering of lichen makes it hard to give an accurate description of this dial. It looks like a conventional semi-circular fan dial with an emphasised horizontal (6-to-6). There are 7 lines for certain; as with Dial 1, the lower R quadrant is less well defined – perhaps less deeply incised and gradually eroded, or because locally the afternoon was not significant for services and could be ignored.

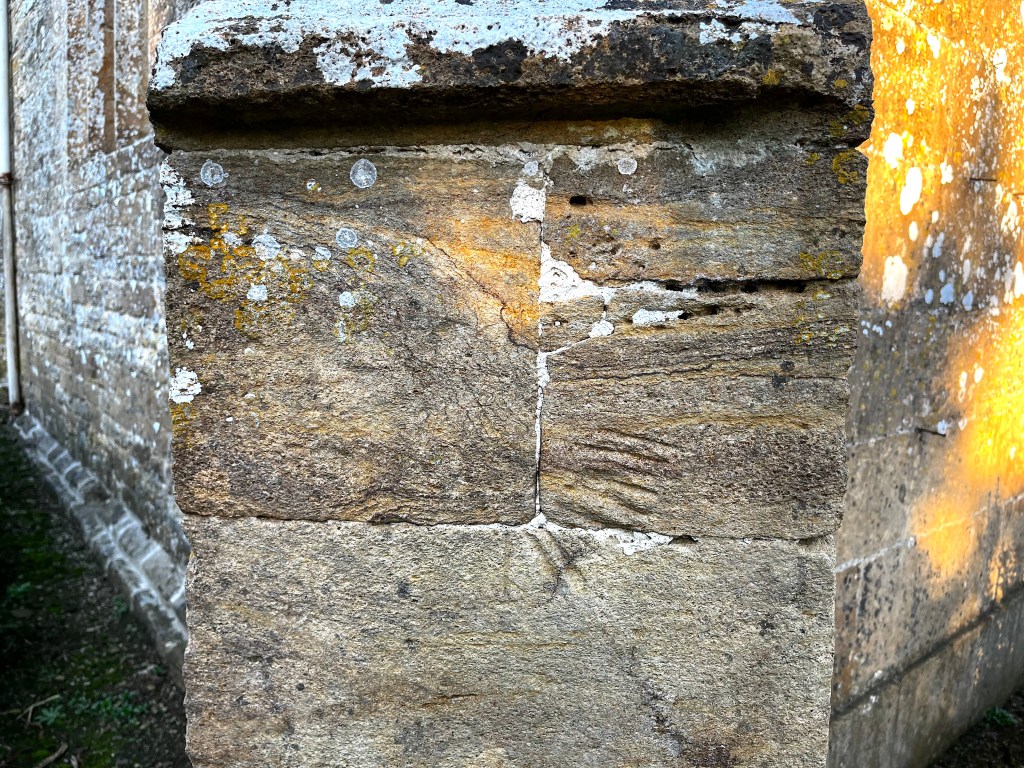

DIAL FRAGMENT?

The markings on the SW face of this buttress are strange. Are these eye-catching striations related to marking the time of day? It seems most unlikely. However, it’s worth zeroing in on the 4 short lines on the stone below. A case could be made that this is a dial fragment on a stone that was at some time relocated there. Alternatively, this is the lower section of a dial in its original position, with the stones now above it displacing the rest of the dial with its style hole.

GSS Category: Scratch Dial

All photos: Keith Salvesen
