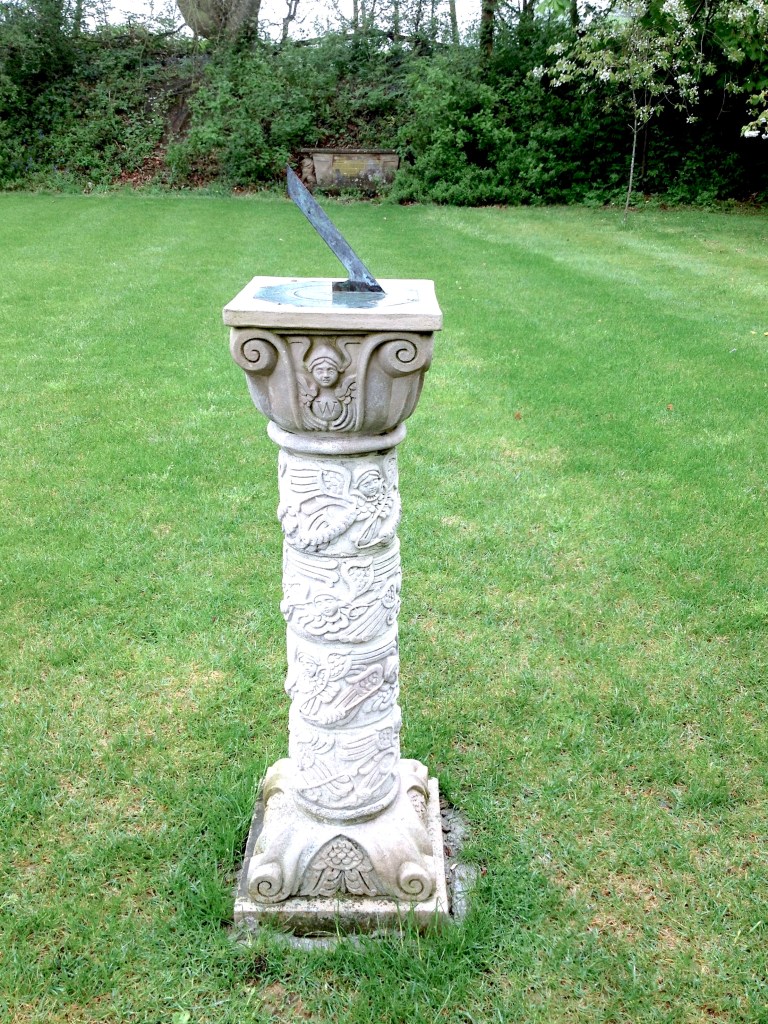

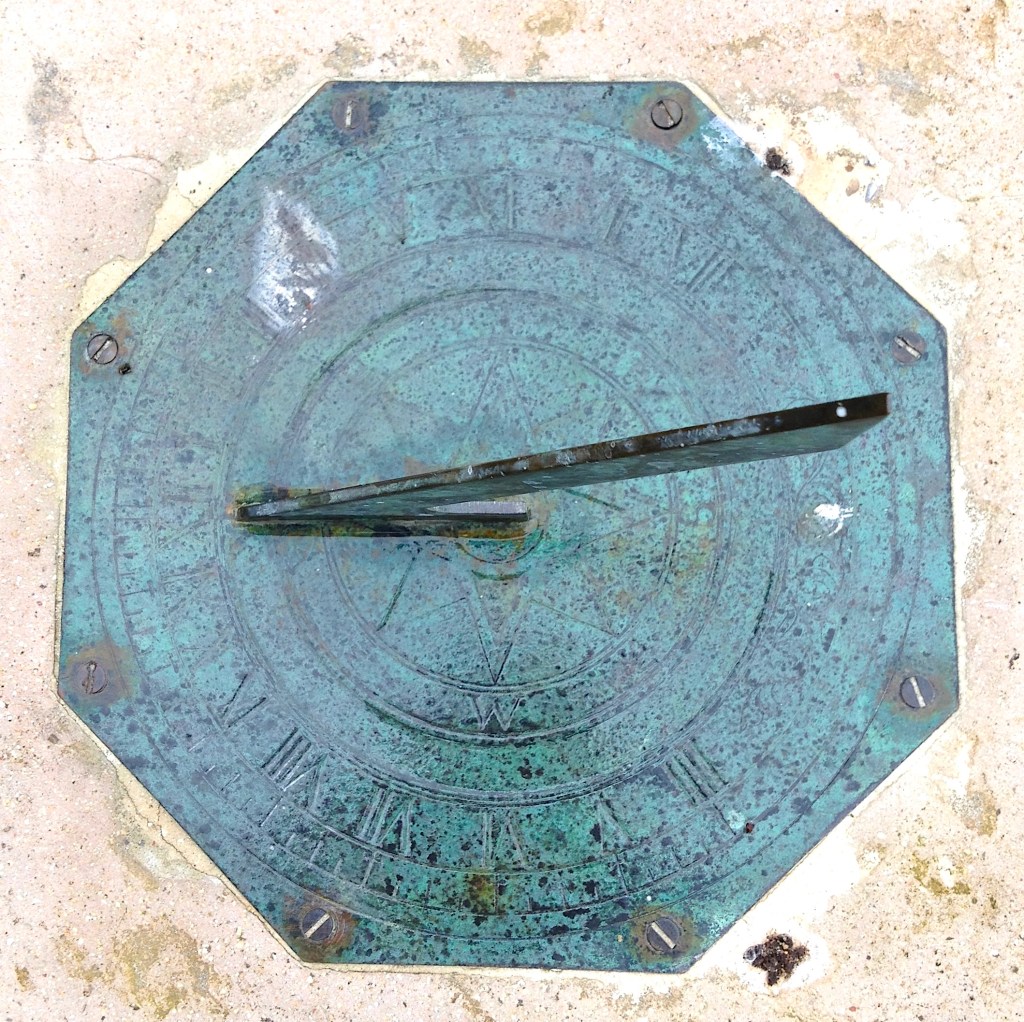

The WATTS GALLERY in Compton, Surrey showcases the work of artist G. F. WATTS and his wife MARY WATTS, exemplar of the Arts and Crafts Movement. The enterprise has expanded hugely since I last visited and took photos of the sundials there. The Gallery link above will give all the current information you could wish for.
You can find out about the remarkable Scaphe Dial at the gallery HERE
GRADE II* † C14 / 15 origins, with later / C19 enlargement. Besides 2 scratch dials there is a vertical dial on the tower dated 1706. 6m NW of Leicester. 52.6832 / -1.2292 / SK522097
The scratch dials are both on the S side. One is on SW corner of the tower; the other on the lower part of the L jamb of a window (I don’t have a more precise location at the moment).

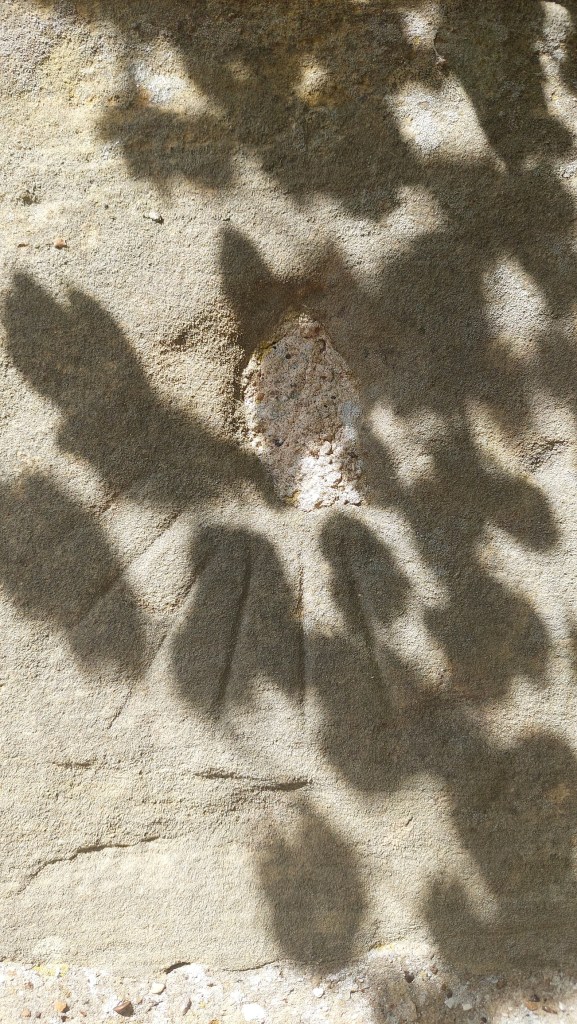

Dial 1 gives the impression of a spider, with legs radiating from the (blocked) gnomon hole in the centre of the dial stone. The clearest lines are at 11 and noon, the latter faintly extended. The others are rather randomly placed. There’s a line in the top L quadrant; and the hint of a line very roughly extending the noon line upwards. The 2 pocks don’t seem to be part of the design.
Dial 2 is more conventional ‘morning dial’, with 6 more or less evenly spaced lines descending (but not very accurately) from a large filled style hole. Only one of the lines is after noon. Simple and straightforward.

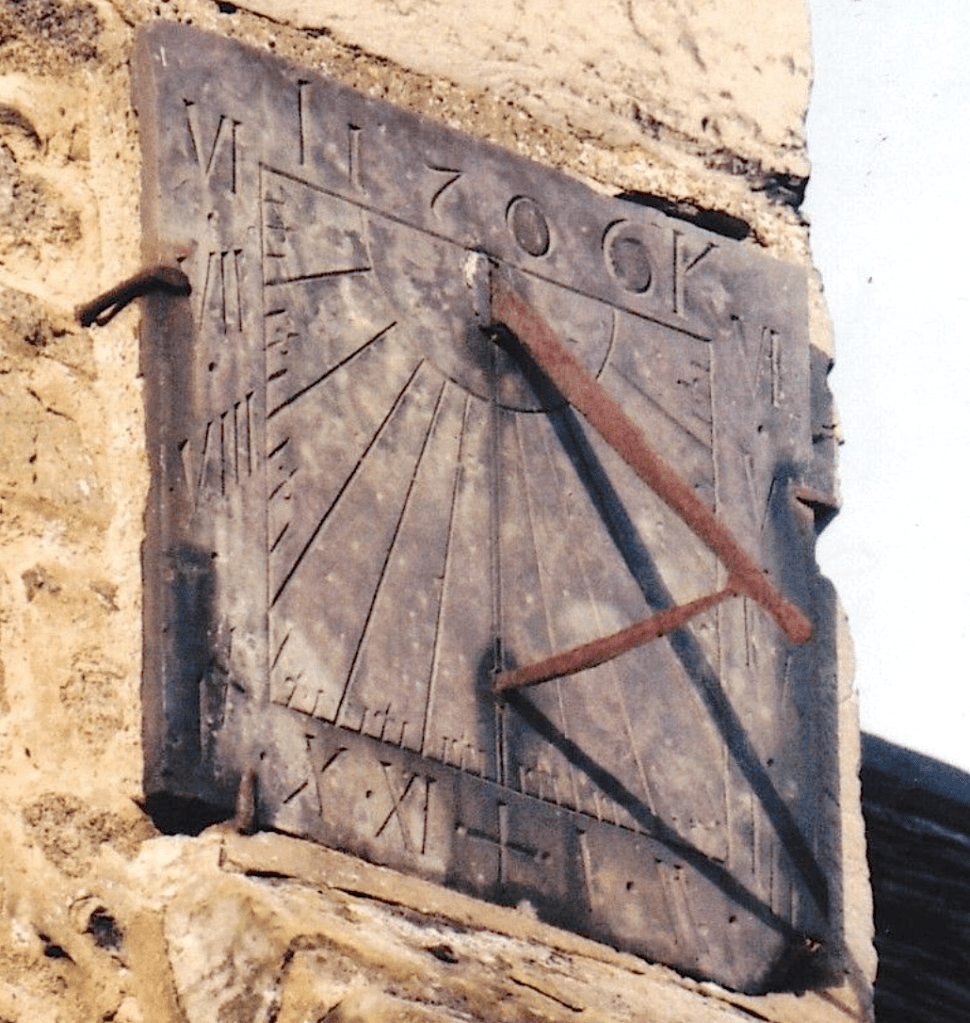

Set on the SE edge of the second stage of the tower, close to the intersection with the roof of the nave. Slate, made by Thomas Woodcock in 1706. Deeply cut and in excellent condition for its age. Initials I K. Cross for 12 noon. Quarter hours marked. The angles of the Roman numerals are carefully graduated as they descend and ascend, suggesting the work of a skilled craftsman dial-maker.
BSS notes very similar dials at Breedon on the Hill and at Leicester, all three being within a few miles of each other.
This interesting dial has been analysed and recorded in some detail by BSS:
The dial is fitted with iron dog nails to the south face of the tower, at the south-east corner, adjacent to the nave junction. The date 1706 is across the top, and being of the local slate, the dial is in remarkable condition for its age. Initials ‘I K’ are on each side of the date. Upright hours VI – + – IV – VI are aligned to the hour lines, which are drawn to a large semicircle around the gnomon root. Short lines mark the half hours, with fleur de lys or arrow heads, and quarter hours. The rusty iron bar gnomon has a straight horizontal support.
GSS Category: Scratch Dial; Vertical Dial
Photos of church and scratch dials, Erika Clarkson; vertical dial from BSS archive
RUSSBOROUGH HOUSE . Co WICKLOW . IRELAND – COURTYARD GATEWAY SUNDIAL
Russborough House, built mid C18 for Joseph Leeson, is one of Ireland’s finest Georgian houses. Set in a large estate in the Wicklow Mountains, the house is renowned for its outstanding art collections (see http://www.russborough.ie/art).

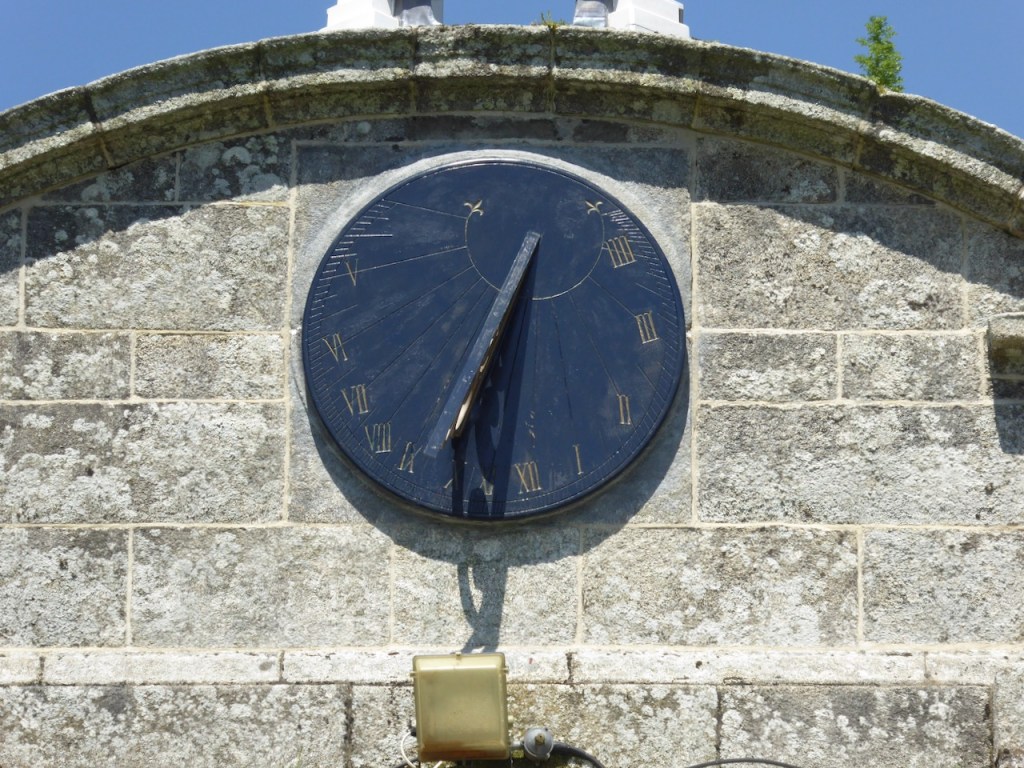

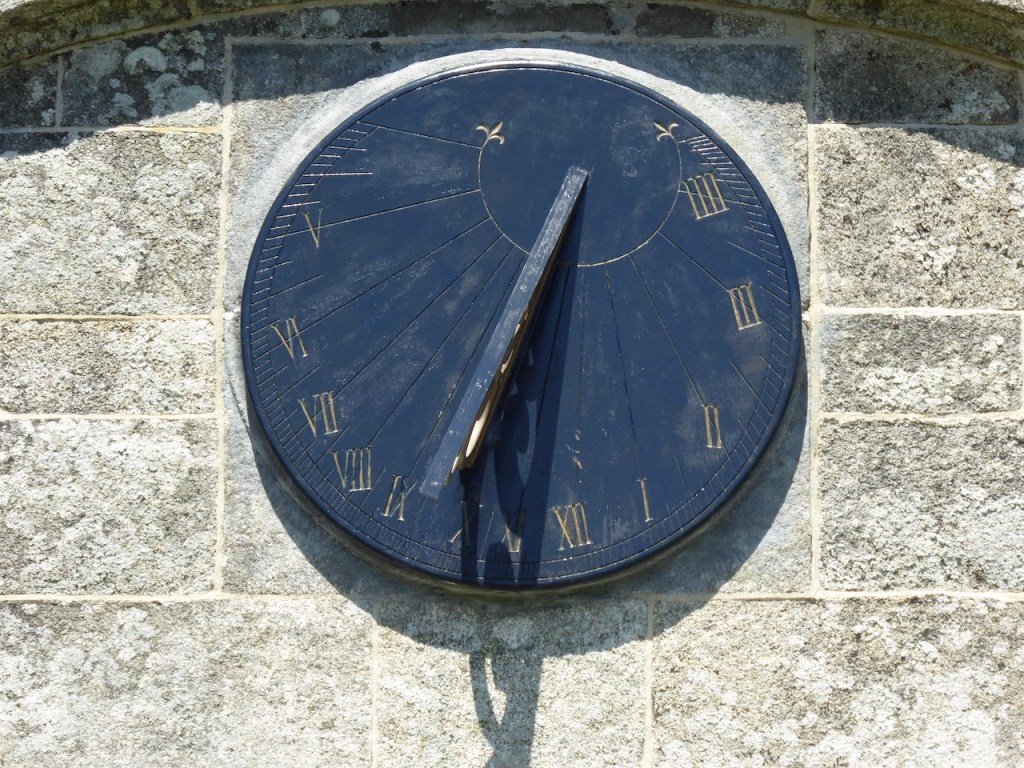

The pleasing and straightforwardly solid gateway to the Courtyard has a most interesting angled sundial with no part of it in an expected place. One consequence of its position is that the graduations are notably complex. The main photo in the gallery below shows this far better than I can explain it.
It is clearly not an old dial. I have seen one photograph that suggests that at some time it has been painted blue. I need to investigate further and will add the details if I can find a date for the dial.
