URCHFONT . WILTS . ST MICHAEL – Scratch Dials 5 – 8

Urchfont . Wilts – St Michael & All Angels

URCHFONT . WILTS . ST MICHAEL & ALL ANGELS

GRADE 1. Late C13 / early C14 Decorated, C15 tower, restored 1864 & 1900. Set elegantly in a spacious and pleasant churchyard on the W. side of the Vale of Pewsey. Besides an excellent collection of dials, much else of interest – see BLB entry. 4m SE. of Devizes. 51.3148 / -1.9429 / SU040573

This is the second post about the 8 scratch dials of Urchfont. The first post for dials 1 – 4 can be found HERE. There is some duplication of general details so that this post can be read without cross-reference.

DIALS

DIALS 5 – 8

A fine ‘multi-dial’ church. There are 8 (possibly 9) dials in all. 6 of these dials are recorded in the BSS register. Dials 5 & 6 are close together on the edge of E. side of the transept. Dials 7 & 8 are low down on adjacent buttresses on the Chancel wall. They are somewhat concealed by chest tombs and easy to miss.

DIALS 5 & 6

Urchfont . Wilts – St Michael & All Angels – Scratch Dials 4 & 5

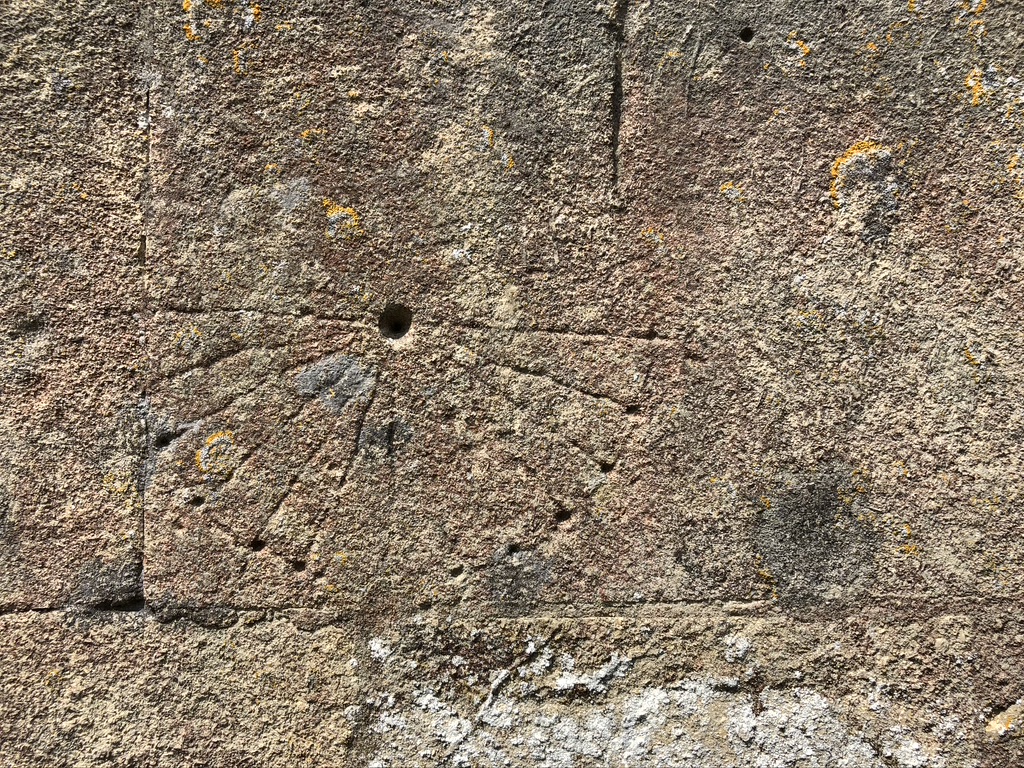

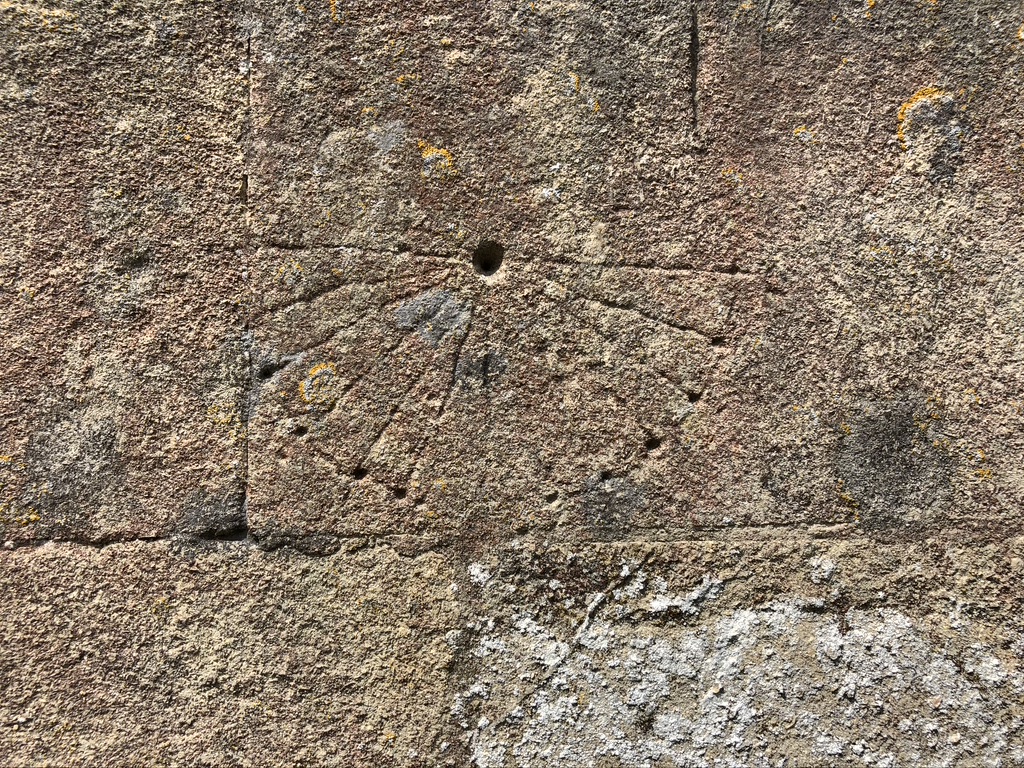

DIAL 5 has 10 distinct lines in additional to the horizontal in the mortar line, and a couple of ?line traces. The gnomon hole is within a larger filled area of (presumably) damage. An emphasised ?Mass line leads down to a crowed noon line area with a possible 1/2 hour radial. The dial seems truncated LHS and along the bottom edge, suggesting a relocation. However, RHS has 2 lines that sweep across into the adjacent stone, suggesting repair / restoration beside and below it.

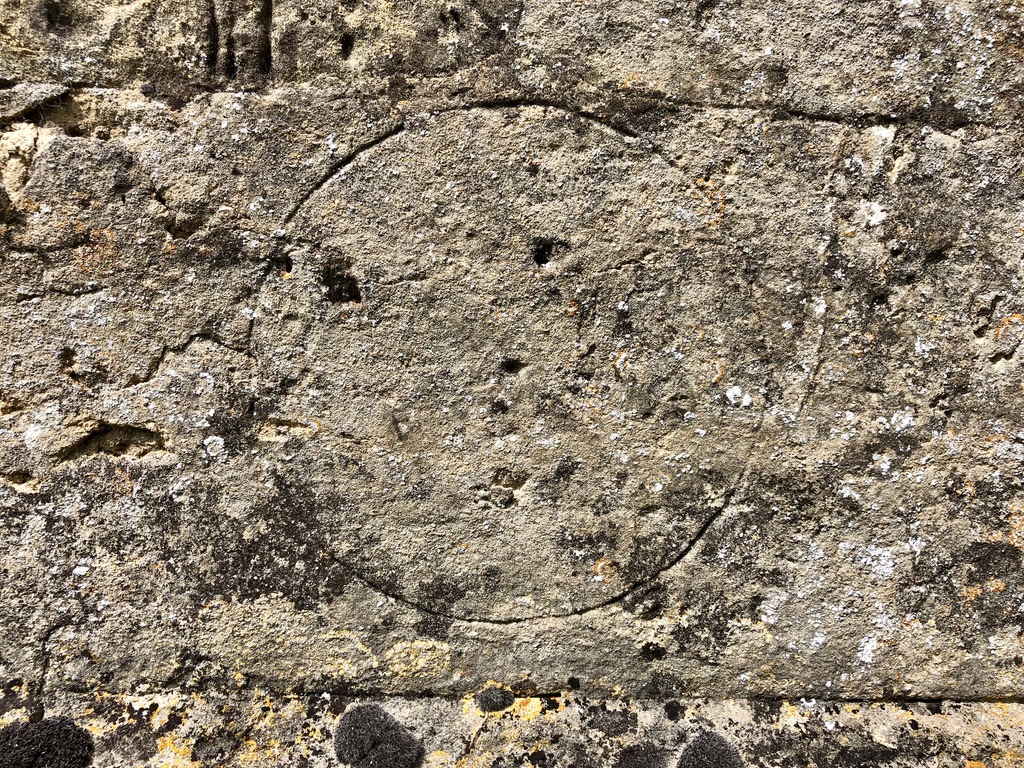

DIAL 6 is a simple complete circle with a small style hole in the centre. Given that medieval dials marked the passage of the day and not ‘clock time’, this very basic type of dial may have been almost as helpful as later, more elaborate ones.

DIAL 7

Urchfont . Wilts – St Michael & All Angels – Scratch Dial 7

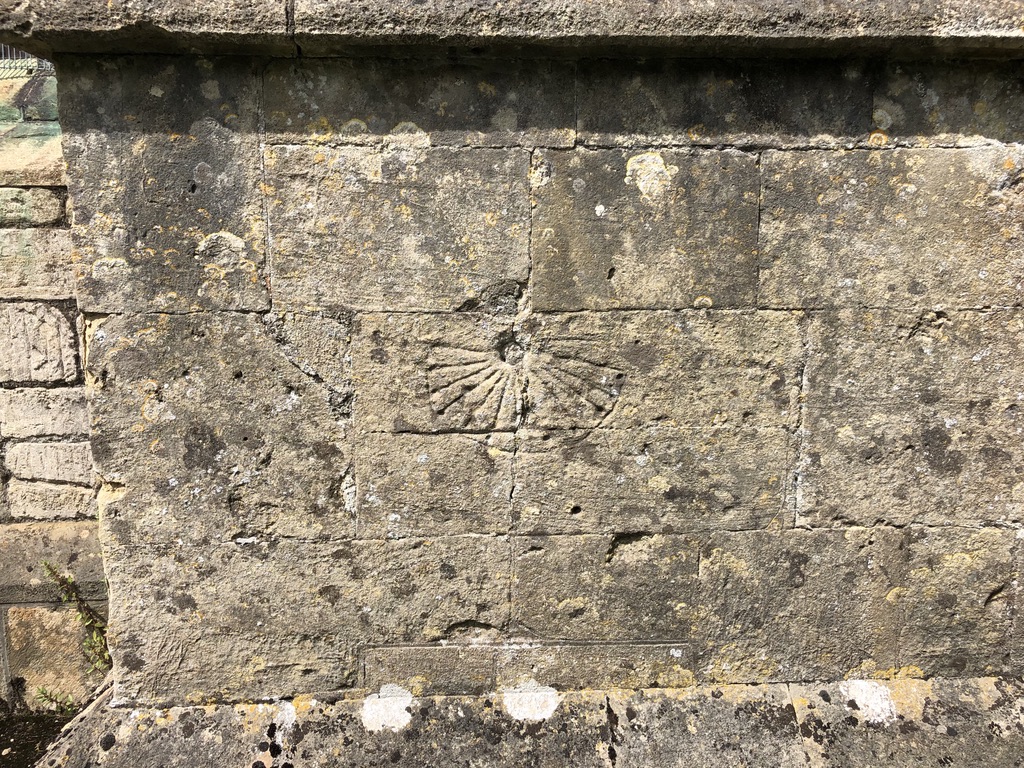

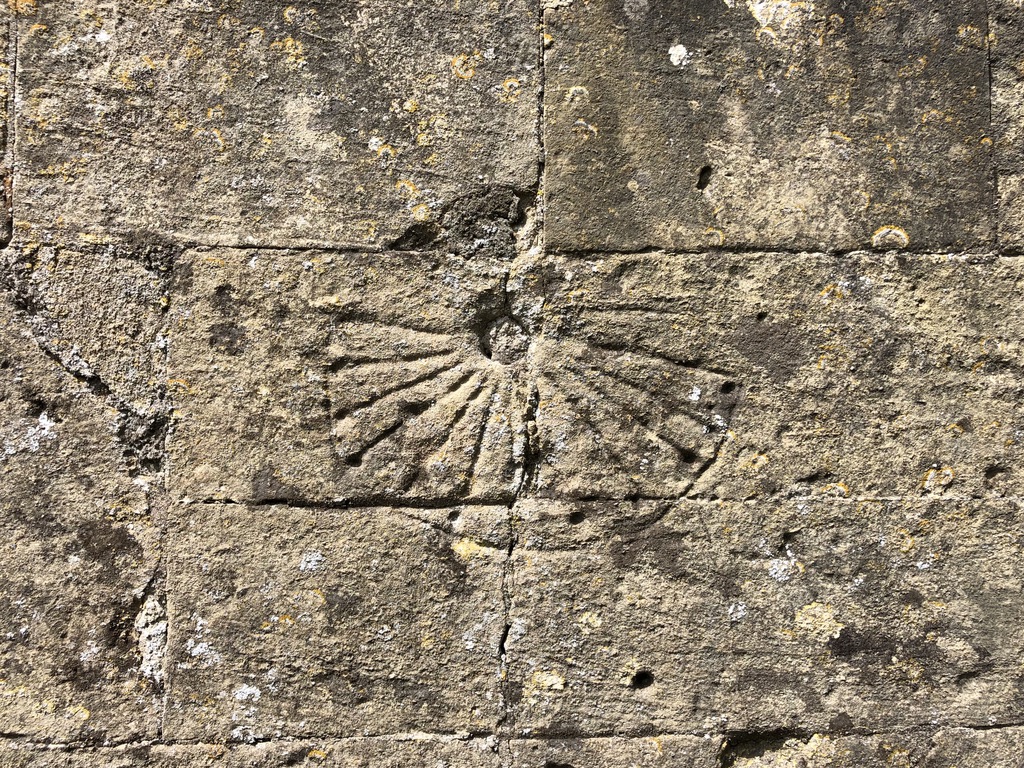

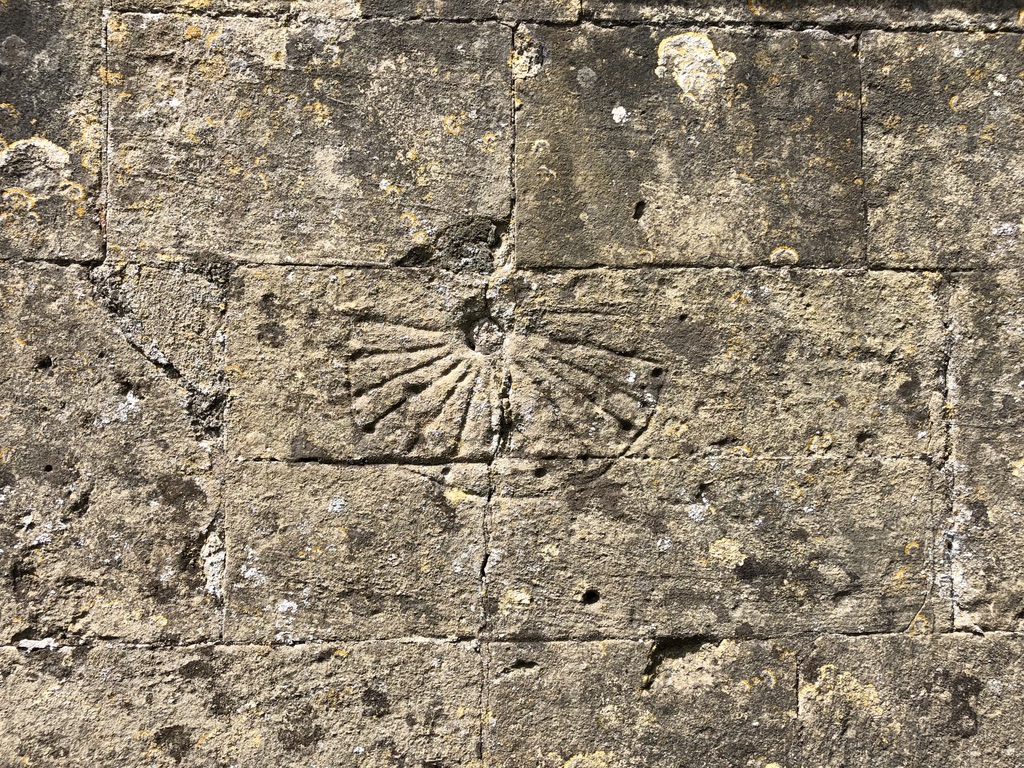

Dial 7 is located low on the middle S. facing Chancel buttress. A semicircle with a complete complement of lines around from the horizontal. Almost all end in pocks (2 in L. quadrant may be lost in the join with the adjacent stone). RHS is partly eroded from the faint noon line upwards. The symbol to the left may be a ritual protection / witch mark – too large for a mason’s mark.

DIAL 8

Urchfont . Wilts – St Michael & All Angels – Scratch Dials

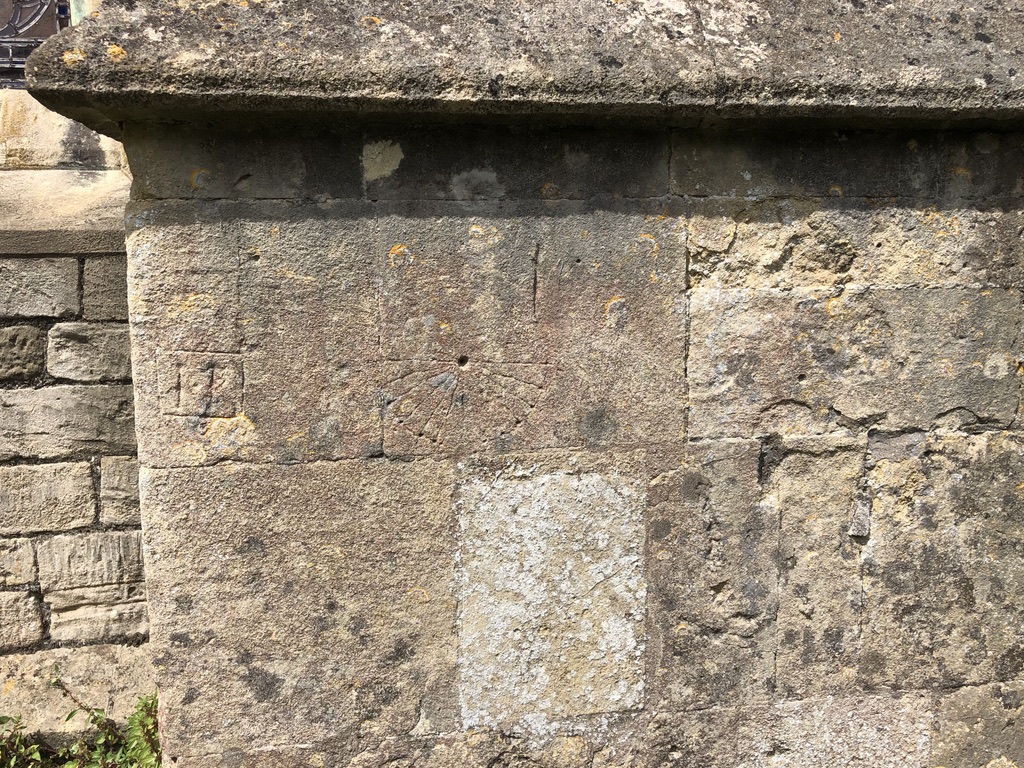

Dial 8 is on the Chancel buttress E. of Dial 7, at the same low level. It is more rustic. Unusually, the dial, though quite small, was cut across 6 stones. Originally the circle was presumably complete, but damage top L and a relocated stone top R have removed the upper segment. The gnomon hole is notably off-centre. Perhaps odd that the dial wasn’t cut using the mortar line for the style hole and as the horizontal 6-to-6 line? Like Dial 7, a full complement of lines with pocks. There is a some graduation, but irregular.

Urchfont . Wilts – St Michael & All Angels – Scratch Dials 7 & 8 and a plausible dial…

DIAL-ISH MARKS

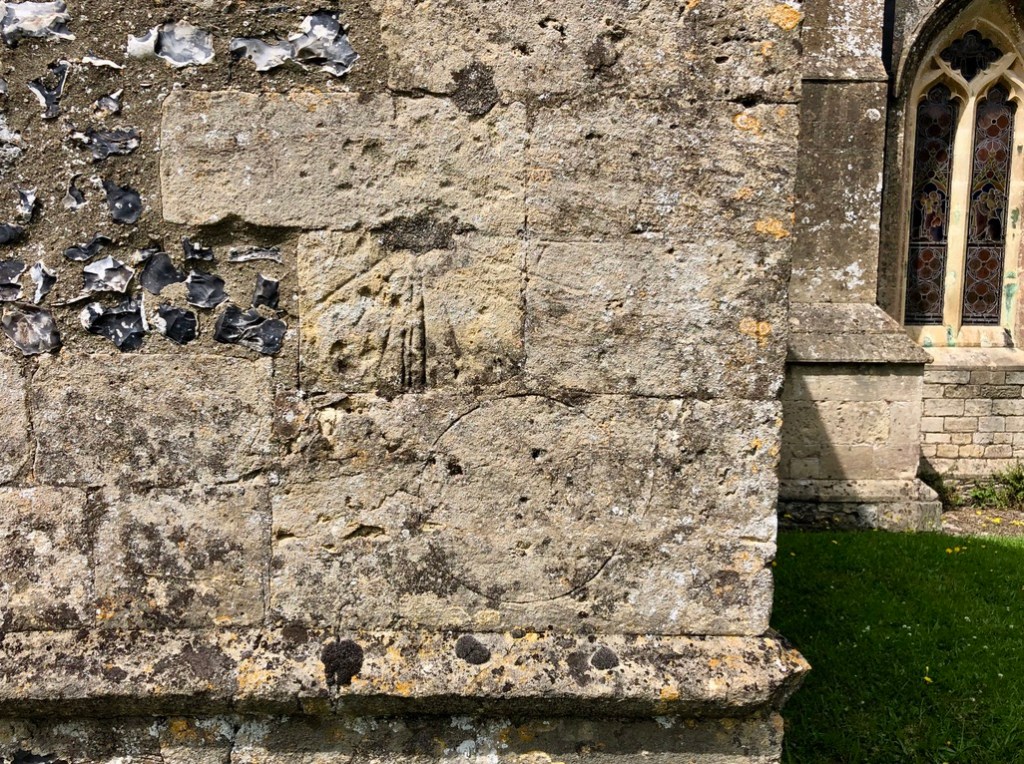

The first is a deliberate pattern of pocks by a doorway – an obvious dial location – with a possible style hole in the mortar. There are similar short curved dot patterns elsewhere, eg Maiden Newton (Dorset). A plausible dial. The second dial is higher on the same buttress as Dial 8, a small hole with 2 apparently intentional lines just before and at noon. Doubtful, but I have seen rather less convincing patterns credited with dial status…

GSS Category: Scratch Dials

All photos: Keith Salvesen

URCHFONT . WILTS . ST MICHAEL – Scratch Dials 1 – 4 (of 8)

Urchfont . Wilts – St Michael & All Angels

URCHFONT . WILTS . ST MICHAEL & ALL ANGELS

GRADE 1 † Late C13 / early C14 Decorated, C15 tower, restored 1864 & 1900. Set elegantly in a spacious and pleasant churchyard. Besides an excellent collection of dials, much else of interest – see BLB entry. 4m SE. of Devizes. 51.3148 / -1.9429 / SU040573

DIALS

This fine church in an attractive village on the W. edge of the Vale of Pewsey is well worth a visit, not least (in the context of this site) because it is a ‘multi-dial’ church. There are 8 (possibly 9) dials in all, mostly easy to spot and rewarding to examine in detail. 6 of these dials are recorded in the BSS register. I have split them into 2 groups. The first 4, featured here, are all on the S. transept.

DIALS 1 – 4

Dials 1 – 4 are all close to each other on the S. face of the transept. Dials 1 – 3 are cut into quoin stones on the W. edge of the transept, nearest the porch. Two are close to each other; the third is higher up (I was fortunate to spot it). All 3 dials are marked mainly in the lower L. quadrant. Dial 4 is a quite different type, within a circle. Located immediately W. of the large transept window.

DIALS 1 & 2

Urchfont . Wilts – St Michael & All Angels – Scratch Dials 1 & 2

DIAL 1 has 3 distinct lines and a trace at (roughly) 07. 11 is faintly extended. A partial (semi?) circle encloses the lines and the sector continues past the slightly offset noon line. There are 4 pocks that are part of the design, one a terminal dot. The shape of the style hole is (now) square, suggesting a later replacement (cf Glanvilles Wootton, which still has its square gnomon).

DIAL 2 has a large style hole drilled between the 2 stones that form the horizontal. There are 3 clear lines – the noon line extended – and possibly a couple of faint / eroded lines. Small pocks on the edge are dwarfed by a huge ‘mid-morning’ hole that was perhaps added later – or was a forthright call to Mass.

Urchfont: dials 1 – 3

DIAL 3

The third dial on the same quoin is much higher, and easy to miss. A large style hole with 3 clear-cut lines, the middle one extended and with a pock at the end. There’s a fainter line R. of the (slightly offset) noon line. Presumably, although the quoin as a whole seems uniform, the stone was relocated to its elevated position.

DIAL 4

This is a pretty dial enclosed by a complete outer circle. The dial markings are enclosed within a very faint inner circle. There are 5 clear lines and traces of 3 or 4 others. There is no clear noon line, and overall the positions of the radials seem rather unusual.

Urchfont . Wilts – St Michael & All Angels – Scratch Dials

Image 1 in the gallery below includes dials 1 -3 on their respective quoin stones, alongside dial 4.

GSS Category: Scratch Dials

All photos: Keith Salvesen
