Category: Pillar Dial

WIMBORNE MINSTER . DORSET . ST CUTHBERGA – PILLAR DIAL

Published on by Rolling HarbourLeave a comment
Ethan Doyle White . Wiki. CC/OS

ST CUTHBERGA . WIMBORNE MINSTER . DORSET

The origins of the Minster date back to the C8. The building seen today dates from early C12 with development during subsequent centuries. Leaving aside the merits of the splendid building, the impressively large stone block on the S side is unmissable. The plinth alone is 6′ high; S face is 4′ wide; E & W faces are 3′ wide. N face has an inscribed tablet only.

DIAL DATES

The images featured below give a good idea of each face, gnomon, and relative aspects, so I won’t go into more detail. However there is a conundrum about dates. There was at least one relocation of the dial, and areas of restoration / repair are evident. The inscription on N face is This ancient sun-dial was removed from the gable of the South transept at its restoration 1891 and was erected here 1894 George E Richards [and] Charles H Gush Churchwardens.

As seen today, the date 1676 is given top left of the south face on new stone. There is no date in the corresponding position on the right side. However in T G W Henslow’s delightful Ye Sundial Booke (1st ed 1914), his charming drawing shows the date 1732 in the top right of the south face with no date on the left side. And more confusingly, in the Wills’s cigarette card sundial series (1928, see below), both dates are shown.

SOUTH

SOUTH WEST

WEST

NORTH WEST

NORTH

Malc1005 Tripadvisor

EAST

SOUTH EAST

Ye Sundial Booke . T G W Henslow

A BRIEF HISTORY OF THE MINSTER

WILLS’S CIGARETTE CARD SUNDIAL SERIES 1928

FRY’S CHOCOLATE CARD SUNDIAL SERIES

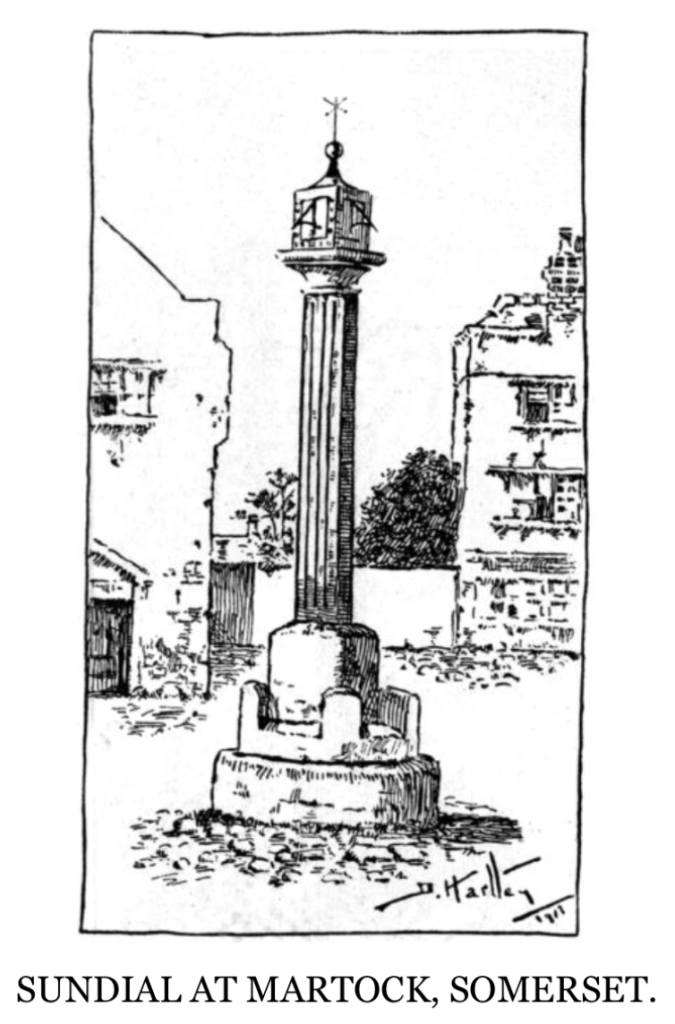

MARTOCK . SOMERSET . MARKET CROSS – Cube Dial

Published on by Rolling HarbourLeave a comment

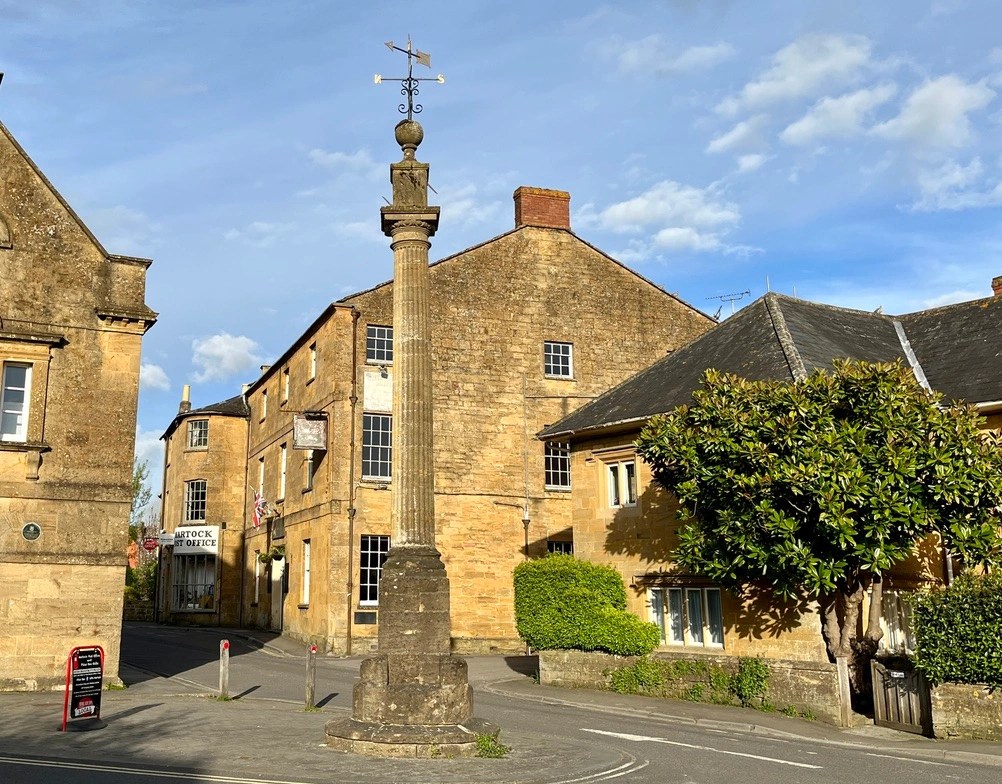

MARTOCK MARKET CROSS: ‘THE PINNACLE’

GRADE II ❖ Medieval base. 6-metre Column dated 1741. One sundial face also has that date. All but plinth block entirely rebuilt 1982. The fluted Tuscan column was perhaps copied from a similar one at Wilton. 8m NW of Yeovil. 50.970 / -2.7666 /  ST462192

DIAL

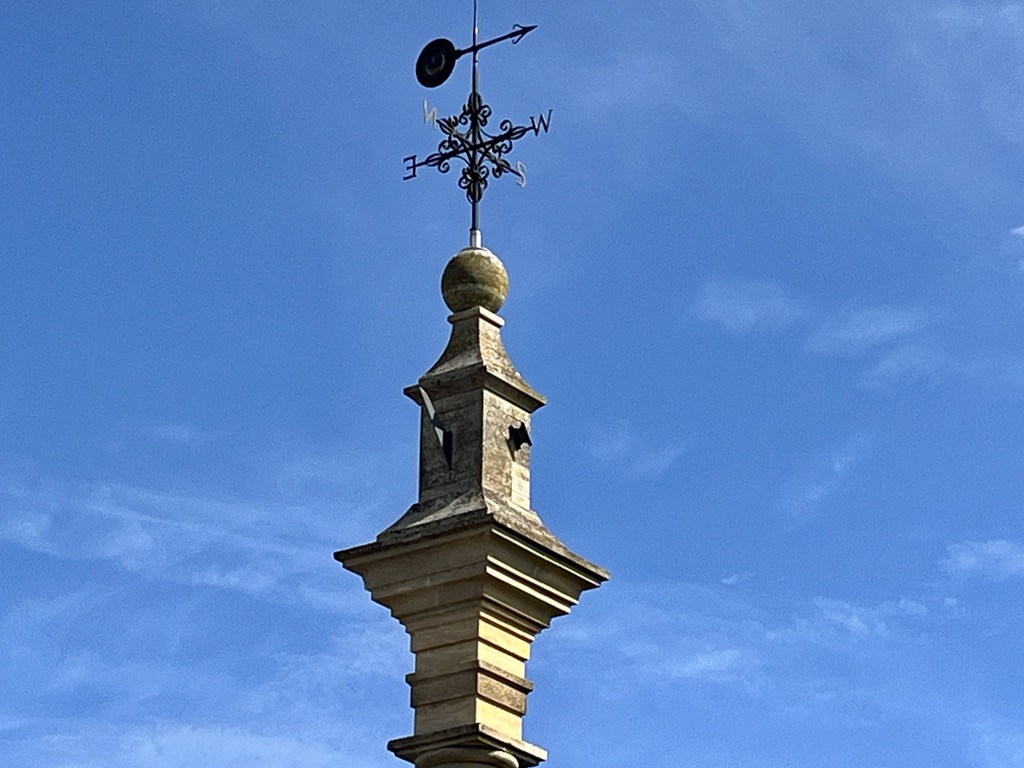

The images were taken starting from approx. NW, moving counter-clockwise. All four faces are included, some clearer than others. The various gnomon styles are shown. I have divided the photos into 2 blocks for simplicity. The dial is topped with a ball finial, which in turn supports an attractive weathervane.

As if this sundial were not enough, Martock’s very fine All Saints church has an excellent cube dial over the gateway: ALL SAINTS . MARTOCK . CUBE DIAL

MARTOCK HISTORY CLUB has a good article about the dial and other local features of interest.

GSS Category: Market Cross; Column Dial; Pinnacle Dial; Cube Dial

All photos: Keith Salvesen

ILCHESTER . SOM . MARKET CROSS

Published on by Rolling HarbourLeave a comment

GRADE II ❖. 1795. Market Cross on site of earlier cross. Ham stone. Circular base with two chamfered offsets, set on circular step; square stepped plinth carrying simple Doric column with entablature moulding over, then square-plan block with sundials having sheet metal gnomons, and a ball finial with wrought-iron wind vane. (VCH, Vol III, 1974).

DIAL M FOR MISFORTUNE

The VCH record of 1974 pre-dated 2 subsequent calamities. The original dial, erected in 1792 was significantly damaged in 1990 gales. A replacement with new column, dial, and gnomons was erected in 1991 (BSS). The original dial motto was indecipherable and was replaced by a new motto Tempus Orbis.

Then in 2017, a car drove directly into the monument, smashing the base and causing the whole edifice to collapse (see below). ST 52193 22723

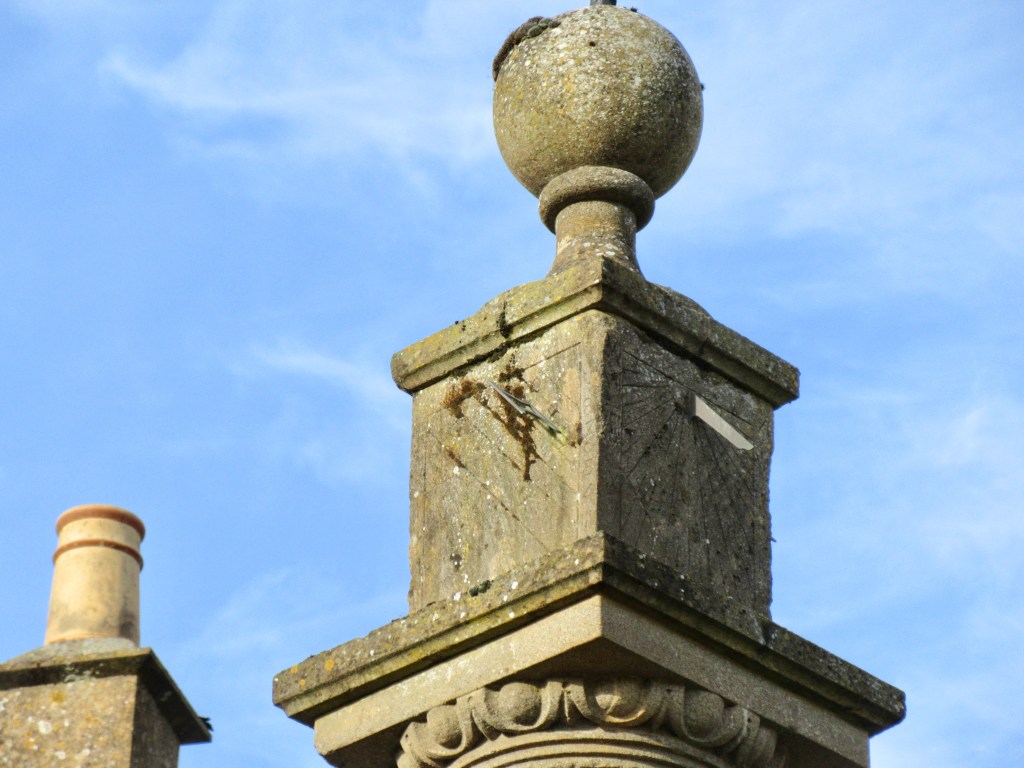

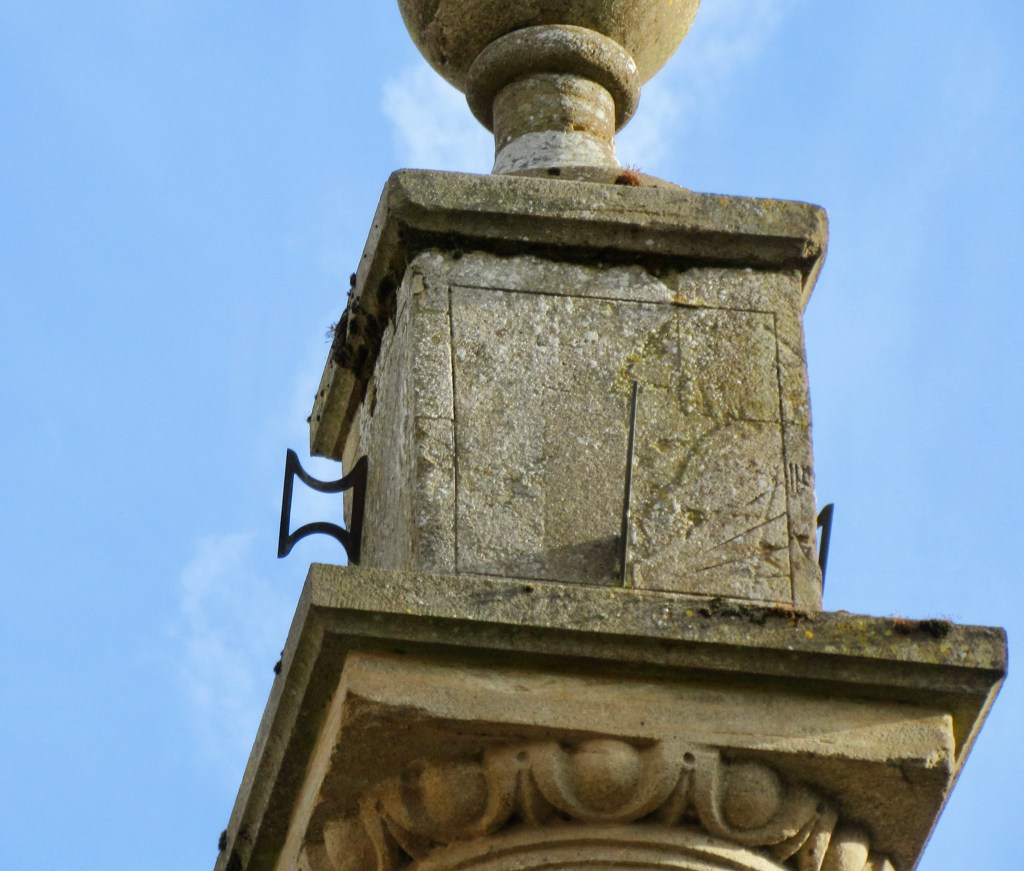

This is a fine example of a Market Cross, one of 3 or 4 in the region (eg Martock). Tall, slender, and uncomplicated, the dial is pleasingly in proportion to the overall design. My camera didn’t deal with the height well enough to show the detail. Several angles of the dial and gnomons are shown, but not the markings on each face. However, there is a close-up view of one face of the dial below.

MONUMENTAL DAMAGE 2017

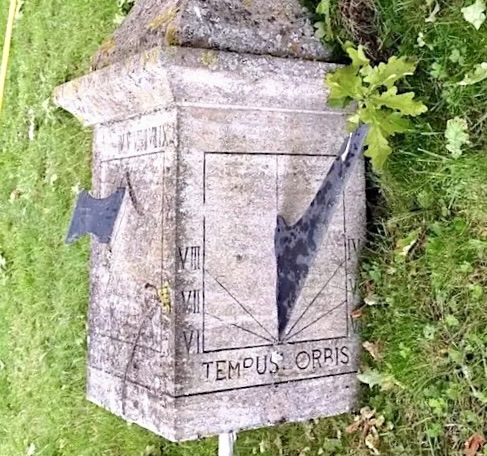

Early one August morning a car drove directly into the monument. The driver seems to have been unhurt, and was arrested for drunk driving (outcome unknown). The impact smashed the base and destabilised the entire structure. The images below show the dramatic aftermath. The monument was in due course rebuilt using parts of the original structure(s) where possible. It now, unsurprisingly, in excellent condition.

The restorers BODEN & WARD earned a prestigious award for this challenging project. The link will take you to their records; the photos of some of the reconstruction work are fascinating.

TEMPUS ORBIS

A simple-seeming motto that is hard to translate. Not mentioned by Gatty. The literal ‘Time (of the) World’ doesn’t really work. Perhaps ‘the Circle of Time’, given that the quotidian day lights each face as the world orbits the sun.

GSS Category: Cube Dial; Market Cross; Market Cross Sundial; Pillar Sundial

Image Credit: Keith Salvesen; BBC / Christopher Brown; Somerset Live; Bowden & Ward

KELBURN CASTLE . LARGS . AYRSHIRE

Published on by Rolling HarbourLeave a comment

KELBURN CASTLE . AYRSHIRE

The image above is enhanced to show this renowned castle in all its dramatic glory. The ancient seat of the Earls of Glasgow dates from C13 – one of the oldest castles in Scotland and the longest continuous family line of descent. This article is adapted from an earlier one published elsewhere. You will find further information about this magnificently daring blend of ancient and modern at the end.

A FINE MULTI-FACETED SCOTTISH SUNDIAL AT KELBURN CASTLE, AYRSHIRE

If you want to find a good choice of multi-faceted sundials, Scotland is the place to go. A considerable number may be found at country houses and castles, or elsewhere having originated from a large estate. Many, perhaps most, are 200-300 years old. Some are relatively simple; others are so complex that their purpose is clearly as much ornamental as horological. Good examples can be found at Glamis, Haddo House, Castle Fraser and Culzean Castle.

The 1707 multi-faceted oblelisk sundial at Kelburn is one of the most important sundials in Scotland. Some restoration has been carried out, and it now appears to be in overall good condition. While there seems to be no agreed figure for the exact number of individual dials, the count starts at 70.

I’ve made no attempt to describe the dials for obvious reasons, but there are links at the end that will be helpful for those who want to investigate further than looking at the photos.

THE SUNDIAL FROM EACH ORIENTATION

EAST SIDE

NORTH SIDE

WEST SIDE

SOUTH SIDE

SPIRE

NOTES

Kelburn’s astonishing transformation from early medieval stronghold into an outrageous post-psychedelic House of Fun began in 2007. The building’s concrete cladding needed to be replaced, following which (and with official approval) four Brazilian graffiti artists were invited to let their imaginations run loose. And did.

There is plenty of material online about this remarkable building – see link to its website below. Enterprises on offer include weddings; yurts; summer music festival; a reputedly scary Halloween. Summed up in the estate material: It’s a cultural safari for the mind, body and soul.

GATTY (p 140)

BSS

The Kelburn Dial featured in Bulletin 1996 in connection with a later dial based on it

DESCRIPTIVE NOTE

LINKS

KELBURN CASTLE & ESTATE Castle website

ANCIENT SUNDIALS OF SCOTLAND (Somerville)

HISTORIC ENVIRONMENT SCOTLAND Listing details

CANMORE NATIONAL RECORDS

There is a second, smaller obelisk sundial NW of the castle that receives rather less attention: Sundial to west of Kelburn Castle, Kelburn Castle Estate, Fairlie (LB7298). Listing details can be found HERE

Image from the Canmore photographic records for Kelburn

GSS Category: Obelisk Dial; Multiple Dial; Scottish Sundial

All photos and material: Keith Salvesen except as indicated

BARRINGTON COURT (NT) . SOMERSET: Dodecahedral Dial

Published on by Rolling Harbour1 Comment

BARRINGTON COURT (NT) . ILMINSTER . SOMERSET

DODECAHEDRAL DIAL WITH PENTAGONAL FACETS

A SPECTACULAR DIAL IN A PERFECT SETTING

BSS RECORD

Located on the south lawn. Dodecahedron dial with pentagonal faces. Two ‘rows’ of five dials. The top row reclines, the bottom row inclines. All lines and numerals are visible, all gnomons are intact and 4mm thick. Overall the dial shows 4am to 8pm in hours. The numerals are Arabic, and are in relief, as is light scroll work on some faces. The dial is mounted 1760 mm high on a stone pedestal. It is surmounted by a weathered lion rampant 460 mm tall. The dial is said to have come from Scotland about 1910. SRN 8046 at East Ruston, Norfolk, appears to be a direct copy of this dial.

LOWER FACETS

UPPER FACETS

MIXED FACETS

GSS Category: Dodecahydron Dial; Polyhedral Dial; Multi-Dial; Cube & Similar Dials

All photos: Keith Salvesen

ALCISTON CHURCH . E SUSSEX . (Dedication Unknown) – Modern Column Dial

Published on by Rolling HarbourLeave a comment

ALCISTON CHURCH has no Dedication. That is quite unusual, inviting speculation and maybe inspiring research into the history. I didn’t get that far because this is a multiple scratch dial church, with 4 good examples to admire and write up. You can read my piece about them HERE

In the churchyard there was an object that attracted our attention. This eye-catching slender column had only recently been dug in, and was in pristine condition. Clearly it is a memorial, but no details were marked. The sides and the back are plain. The large hole at the top is lined with gold, which looks very good. As a whole, it is obviously designed with care and made with skill.

DIAL

The dial itself is pleasingly symmetrical, and the composition works very well. I think it is not necessarily intended to have a gnomon, though someone has chosen to improvise with a stick.

,

However, because it faces roughly E rather than S, its ability to mark the passage of the day is limited. Also, the divisions of the lines would be cut differently. However, as a memorial stone, strict accuracy as a sundial may well not be a consideration anyway. It is a fine piece of work in a lovely setting.

GSS Category: Modern Dial; Vertical Dial; Column Dial; Memorial Dial

All photos: Keith Salvesen; thanks to John Foad BSS

ROSEMOOR GARDENS . TORRINGTON . DEVON – Pillar Dial 2004

Published on by Rolling HarbourLeave a comment
The Sundial, Rosemoor Gardens, Devon.

ROSEMOOR GARDENS

Renowned RHS gardens near Torrington, Devon. It’s a wonderful place. You can find out all about it HERE. For present purposes, the focus is on the very fine sundial installed in the gardens in 2004. This is a project of the BRITISH SUNDIAL SOCIETY and the description below is from the BSS record:

This is an unusual dial in the form of a triangular section pillar made of Delabole slate and 1820mm high. It was designed by Sir Mark Lennox-Boyd and made by Ben Jones. It carries a motto on the 610mm diameter slate base ‘But only in time can the moment in the rose-garden be remembered’ (T.S.Eliot, modified from a passage in Burnt Norton, the first of the Four Quartets).

On two of the faces are pairs of declining dials one above the other. The upper ones are drawn for December to June and the lower ones for June to December. The hour lines are corrected for the Equation of Time.There are three declination lines on each dial. Arabic numerals are used and the dials show BST. The easterly dial shows 5:30am to 1:30pm in half and quarter hours while the westerly dial shows 12:30pm to 9:30pm similarly divided. The north dial has dedications to V M Dickinson, M J C Wright, H Addy and R Addy.

DIAL IMAGES 1

All Photos: John Renner

DIAL IMAGES 2

Images taken from the designer’s magisterial book Sundials: History, Art, People, Science. The design below seems an excellent example of art meeting science.

GSS Category: Pillar Dial; Modern Sundial; Pillar Sundial

Credits: Photos by John Renner; material from the book by Mark Lennox-Boyd; British Sundial Society

LLANGARRON . HEREFS . ST DEINST – Pillar Dial; Scratch Dial(?); Consecration Cross

Published on by Rolling HarbourLeave a comment
St Deinst . Llangarron . Herefs

ST DEINST . LLANGARRON . HEREFS

GRADE 1 † C14 & C15; records of C11 origins; trace Norman interlace patterns. Restorations ±1900; later replacement of the top of the spire, repurposed as sundial pillar. Only 1 other church (Itton, nearby) with this Dedication.  7m N of Monmouth; 7m SW of Ross-on-Wye. 51.8871 / -2.6838 /  SO530211

PILLAR (STEEPLE) DIAL

GV II † Tip of spire C14 adapted as horizontal sundial pillar late C19. In churchyard SW of the tower in an ideal place for admiration. Coursed & squared sandstone rubble, circular base. C14 masonry BLB

1. CHURCHYARD VIEW

2. HORIZONTAL DIAL

The dial is octagonal, with quarter-hours marked. IV as IIII. The inscription seems to be Llangarron Parish; and the maker’s name Counsell (though I can find no reference). The Roman numerals are conventional.

SCRATCH DIAL

BSS records a scratch dial with 3 lines on the buttress to W of S porch, in a poor state. Notes include Max. length lines, mm 80. Hard as I looked, I couldn’t find a dial in the given location, or at any height on the buttress. Or elsewhere. Possibly the stonework has deteriorated since the original record was made. The best I can offer is the BSS sketch; and the most promising dial-like area of the buttress.

CONSECRATION CROSS

A fine consecration cross, one of the largest I have seen. One puzzle is that the cross is too large for the stone, so that LHS is cut off at the edge. It seems unlikely that the designer mis-measured to that extent. Possibly the stone was moved and trimmed to fit its present position during restoration.

St Deinst is well described in an online page LLANGARRON HISTORY

GSS Category: Horizontal Dial; Pillar Dial; Scratch Dial; Consecration Cross

All photos: Keith Salvesen
