CHARLTON HORETHORNE . SOM – ST PETER AND ST PAUL . TWO SCRATCH DIALS

DEDICATION † St Peter and St Paul. C12 onwards on probable Saxon site; later work C15 and especially C19

LISTING † Grade II* BLB LINK

LOCATION † 5 miles NE. of Sherborne, 5 miles SW. of Wincanton. A fine early church situated next to the Manor House, overlooking a pleasant village and with fine views. 51.0061 / -2.4785 / ST665230

DIALS † There are two dials. Dial 1, easily found, is on a quoin W. of the porch. Dial 2 is located where the foundations are well below present ground level, and is difficult to reach. The dial is E. of the window E. of the porch and only visible from a narrow trench behind a screen of laurels. Access with care.

Dom Ethelbert Horne – DEH visited the church of May 25th 1915. His observations follow below in italics.

DIAL 1

173. (1) This dial is on a quoin at the s.w. corner of the s. aisle. It is 8 feet 3 inches above the foundations, the noon- line is 4 inches in length, the stylehole is 1 3/4 inches in depth by 1/2 an inch in diameter, and the aspect is s. by 10° e. Type3.

Comment:

1. A faint trace of a circle rhs

2. The noon-line below the style hole has a considerable gap before the start of the line, which is longer and deeper cut than the other radials

3. Above the style hole there is a roughly incised and skewed line from the top of the stone towards the side of the style hole, with (possibly) some form of emphasis at the top end. It seems unlikely to be an upper noon-line, being squint and at odds with the neatly cut lower radials. Possibly it is just a random unrelated mark, from a different century even.

4. However the hint of a further short incision to the left of the crude one makes me wonder if it and the longer line are part of an earlier dial that radiated from a hole in the mortar line above. Perhaps it was superseded by the later more sophisticated dial we now see. DEH clearly did not consider these upper markings to be part of the main dial

DIAL 2

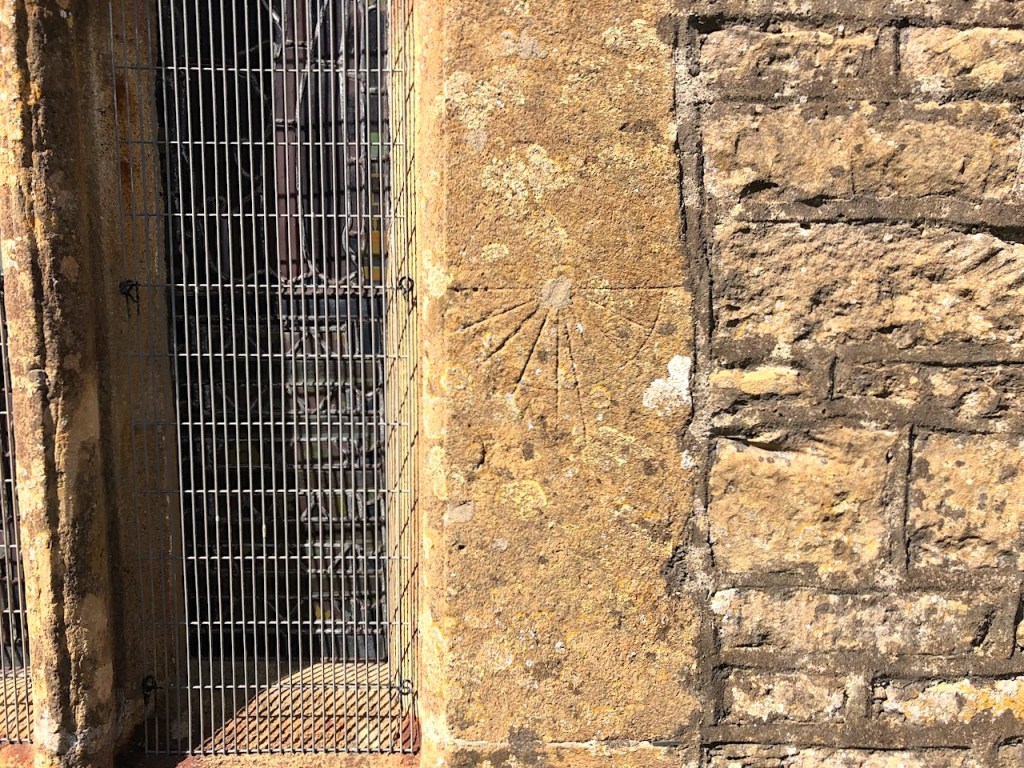

174. (2) This dial is on a quoin on the e. side of the first window e. of the s.porch. It is 8 feet above the foundations, the noonline is 4 inches in length, the stylehole is filled up, and the aspect is s. by 10° e. Type 5b. May 20th, 1915.

Comment: an encircled dial with the upper half left blank. Elongated mid-line with the Prime line emphasised with 3 pocks. Hints of other pocks. The radials have rather random spacing, with the lower significantly elongated below the circle

NOTES † Interesting to see 2 quite different types of dial like these, and on different types of stone. I can’t date them but I suspect Dial 1 is earlier than Dial 2

GSS Category: Scratch Dial

All photos: Keith Salvesen
