BOROUGH GARDENS . DORCHESTER -Analemmatic Sundial

Analemmatic Sundial . Borough Gardens . Dorchester

The Borough Gardens in Dorchester are close to the centre of town. They were laid out and opened in the 1890s as ‘pleasure grounds’, as they remain. There is plenty to offer for all ages in an agreeable undulating space. Lawns, tennis courts, a bandstand, paddling pool, playground, a fountain, a memorial obelisk and more.

ANALEMMATIC SUNDIAL

Amongst the attractions, close to the bandstand, is a modern analemmatic sundial. I don’t know the date it was laid out, but the BSS record is 1998 with the note: The dial is laid out in the play area near the bandstand. Hour markers adjusted for longitude, an hour added for summertime use. Shows hours from 7am to 7pm.

CALENDAR

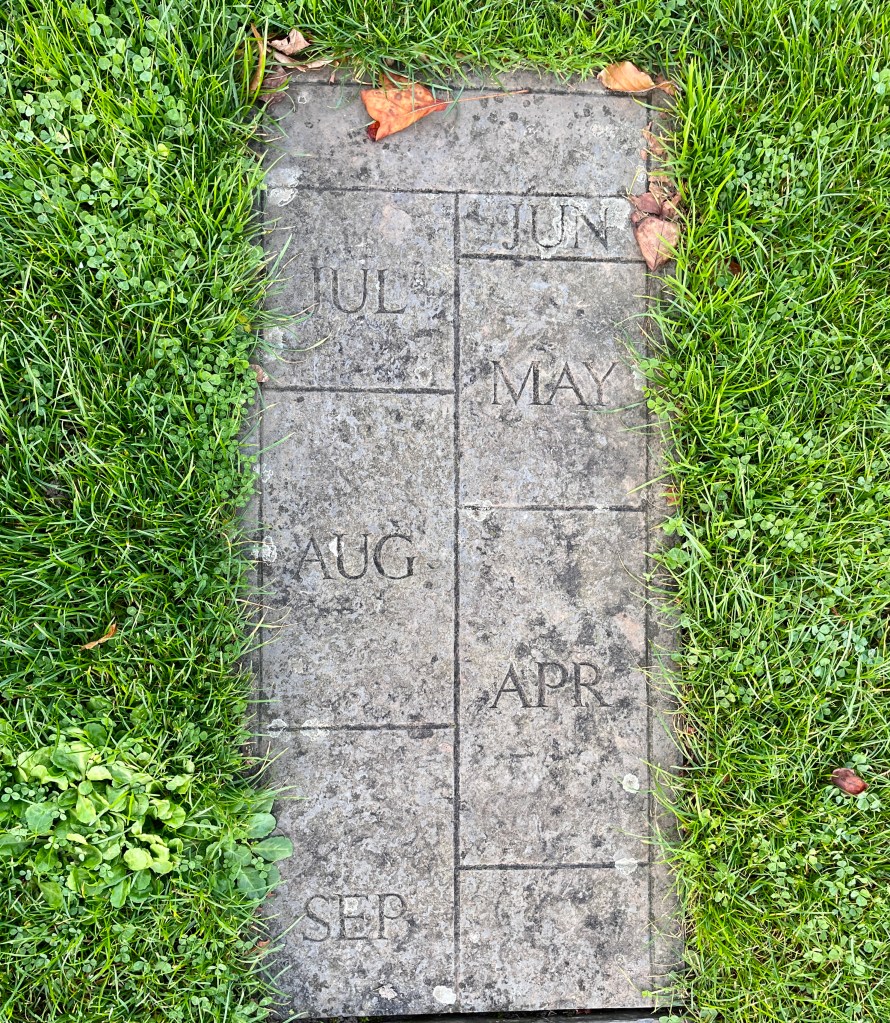

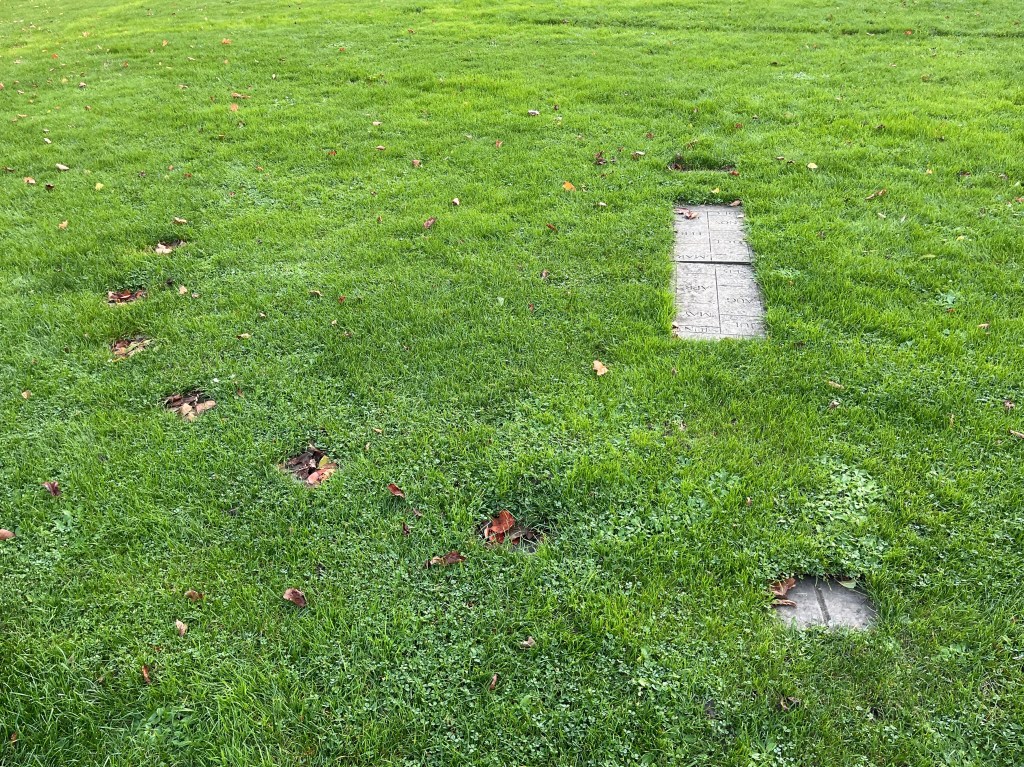

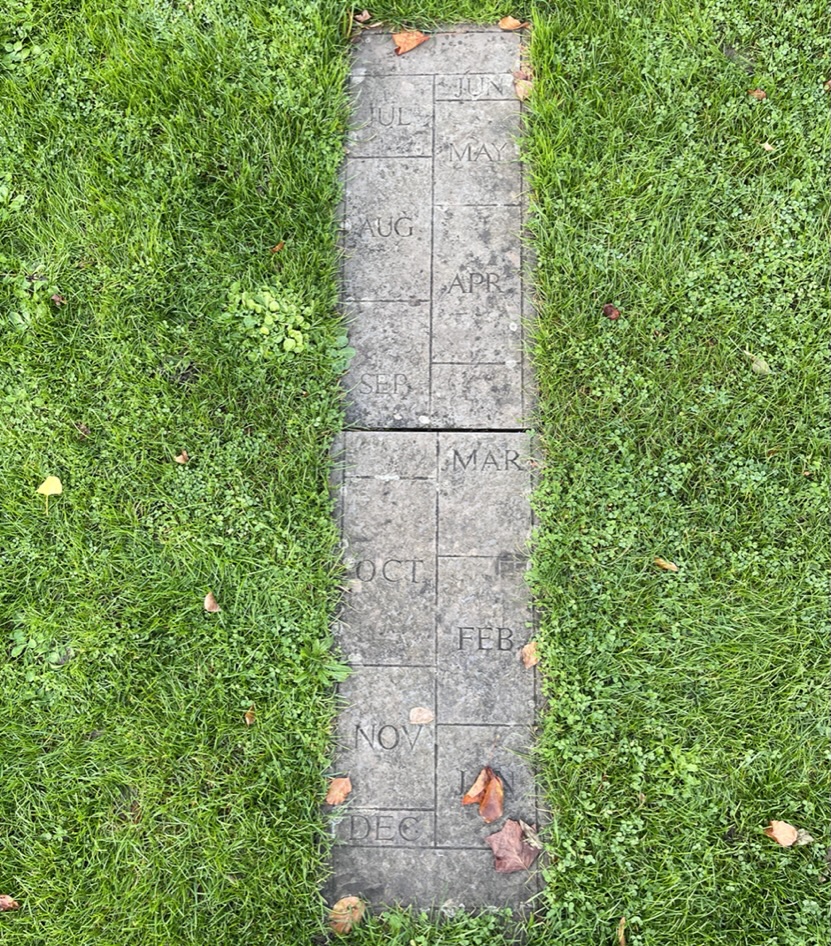

When I visited a few days ago, several small boys were having a kick around, with the dial in the centre of the pitch. No other type of dial would have worked for the purpose. The dial was partly concealed by uncut grass and leaves – the latter covering each numbered stone completely (I had to move some). I liked the way that the dial has several roles: time-telling in an interesting way; an open invitation to be the gnomon; an educative function; and artful horizontal stonework blending in with grassy and leafy surroundings. And a ‘jumpers for goalposts’ pitch into the bargain.

LAYOUT

NUMERALS

GSS Category: Analemmatic Sundial

All photos: Keith Salvesen; written information from municipal sources with thanks

MONUMENTAL SUNDIAL . MUSEO GALILEO . FLORENCE

Lizard / Viper Gnomon of Monumental Dial . Museo Galileo . Florence

MONUMENTAL SUNDIAL . MUSEO GALILEO . FLORENCE

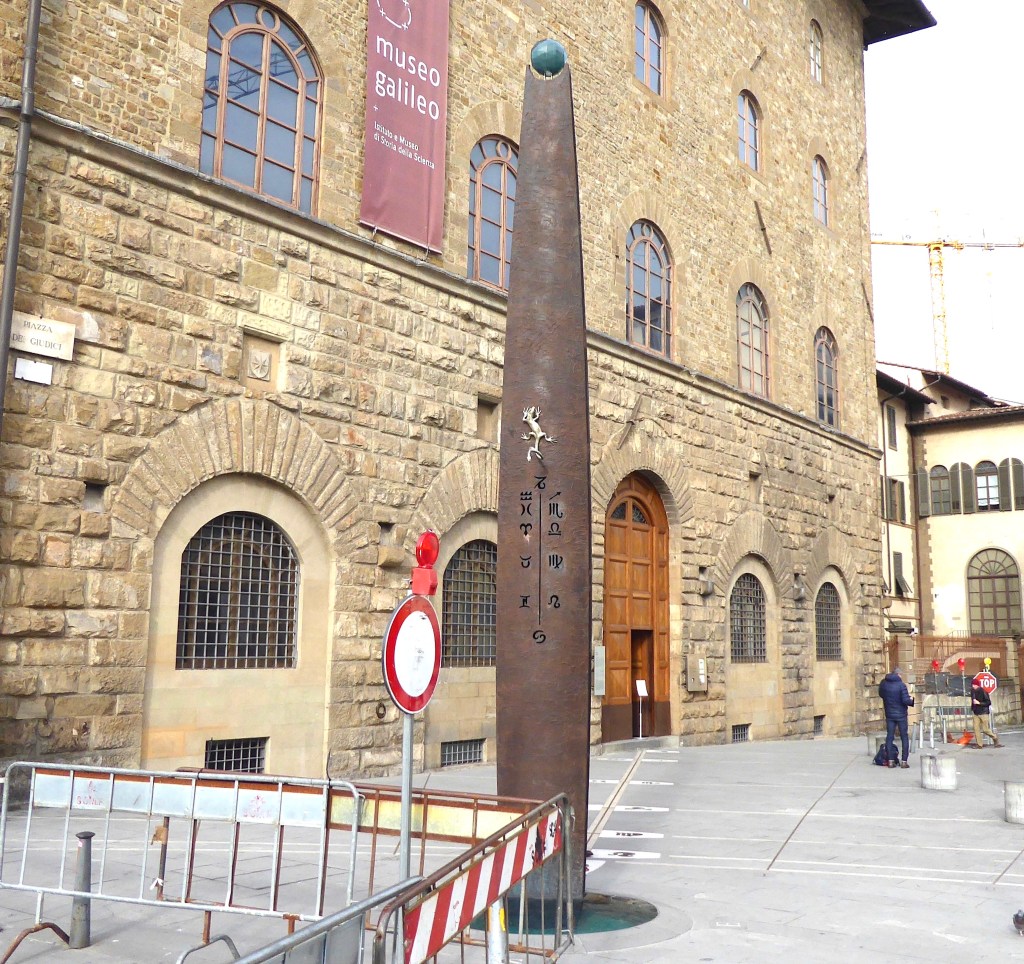

The Museo Galileo‘s Monumental Sundial was built as a mathematical ornament in 2007. The slender bronze column (stele) is in fact formed from two matching columns closely aligned, symbolising day and night. The (mid)day stele faces south, with a vertical meridian line on which the shadow is cast by a lizard’s tail (actually, an imaginary half-lizard, half-viper). The night stele faces north and signifies the constellations Ursa Major and Ursa Minor that enable the Pole Star to be identified.

Monumental Dial . Museo Galileo . Florence

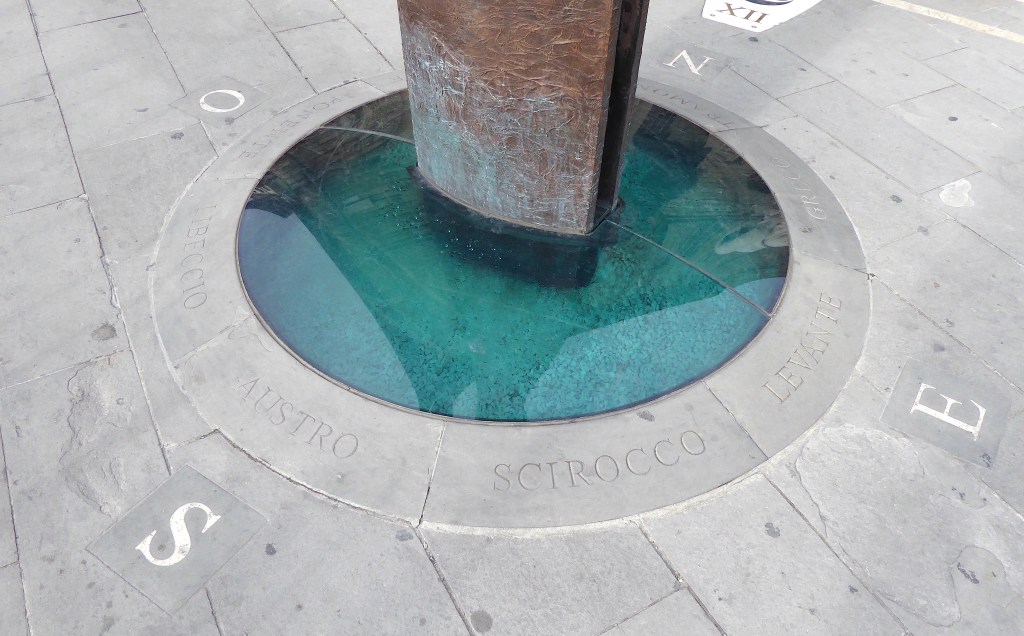

The encircled quadrant design on the pavement at the base of the bronze columns indicates the geographic orientation. This glass base of the gnomon, and also the Zodiac signs in the meridian line (below), are up-lit after dark.

Orientation dial . Monumental Dial . Museo Galileo . Florence

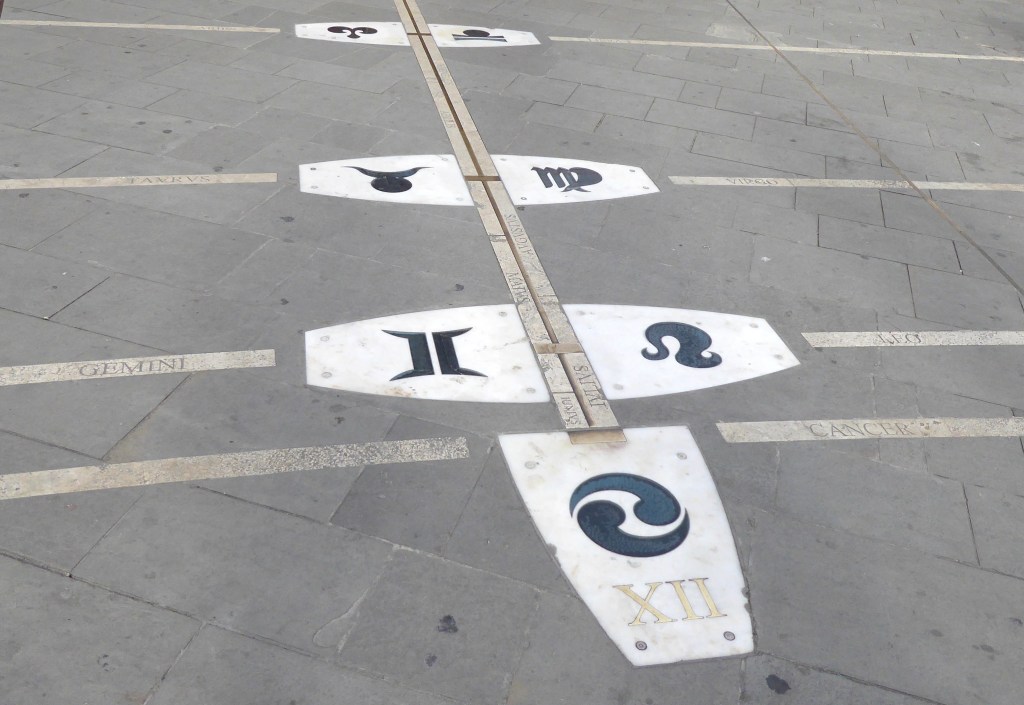

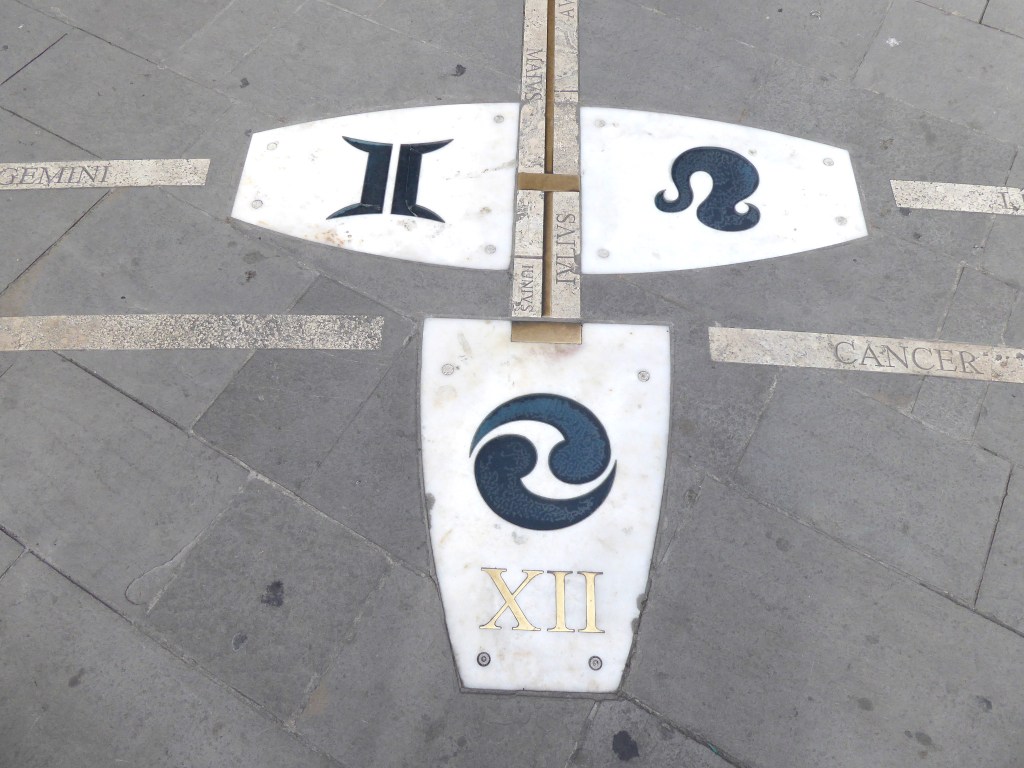

The Museo explains the meridian line in helpfully simple terms: A travertine and brass meridian line is drawn on the pavement, flanked with glass and marble signs of the Zodiac. The meridian line extends for about 15 metres from the museum entrance, where the winter solstice is marked, to the base of the gnomon, where the summer solstice is marked. The travertine curves crossing the meridian line indicate the date. The brass radial lines forming a grid with the two solstitial curves indicate the hours.

The seasons and the four elements are symbolised by the choice of materials: travertine for the earth and autumn; glass for the water and winter; grey stone for the air and spring; bronze for the fire and summer.

LIZARD / VIPER GNOMON ON THE SOUTH FACE OF THE COLUMN

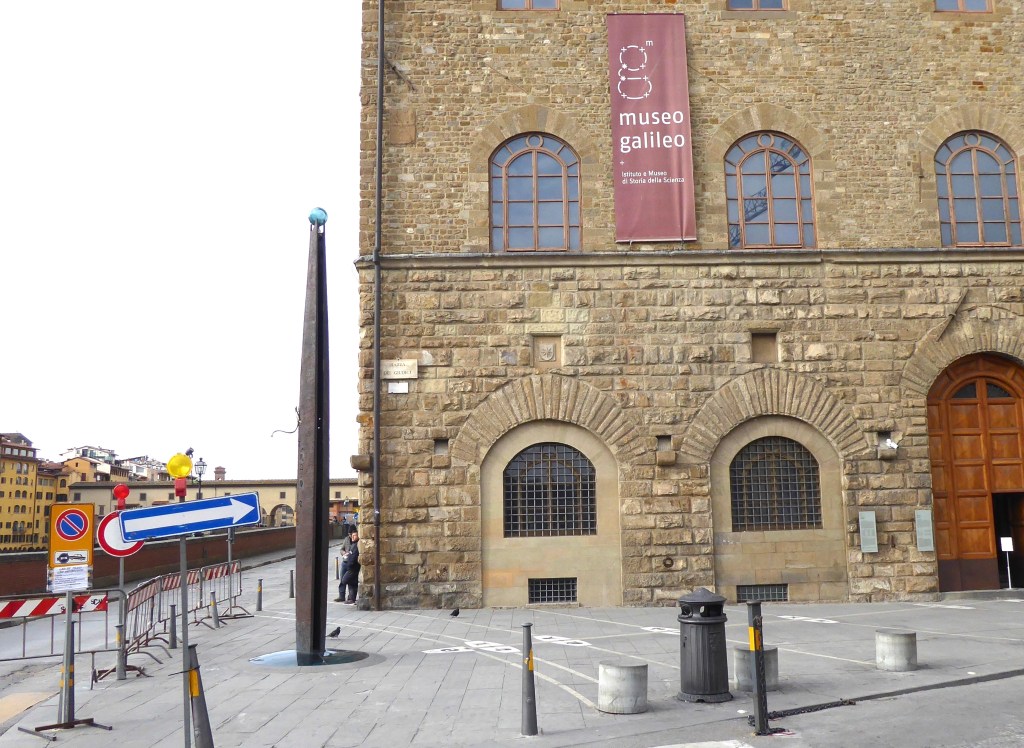

This extraordinary sundial stands by the Arno with the Ponte Vecchio (which itself has a wonderful dial LINK) close by to the west. For anyone with even a minuscule interest in or curiosity about the gradual development of scientific instruments and techniques from medieval times onwards, pay a visit to the excellent online gallery LINK. Look in particular for the two astronomical telescopes made by Galileo himself.

The North American Sundial Society has very good online information about this unique dial. You can watch a short animation of how this gnomonic sundial works here LINK

For those interested in finer details of the way the dial works, the museum’s detailed account is included at the end of this article.

Museo Galileo – Istituto e Museo di Storia della Scienza

Museo Galileo – Monumental Sundial

NASS (North American Sundial Society) Video: Filippo Camerota, Luise Schnabel, Giorgio Strano

How the Sundial works

The shadow cast by the glass polyhedron atop the large bronze gnomon indicates the date and time. The hours from 9:00 AM to 2:00 PM are marked out by radial brass lines. The date is indicated by the travertine traversal lines which mark the Sun’s diurnal course for various periods of the year – precisely when the Star enters the signs of the Zodiac. The shadow cast by the gnomon changes in length during the course of the days and seasons, and indicates true solar time for the place where it is located, which is a different time than that of our wristwatches, known as mean time. In respect to mean timetrue solar time has a periodic variation that can exceed a quarter of an hour.

schema minuti

Moreover, during daylight saving time, the hands of a clock are moved forward one hour. For example, true midday in the month of February would be indicated by the sundial around 12:28 AM while in the month of July it would be indicated around 1:20 PM daylight saving time.

To read the hour and date, you have to identify the hour lines and the calendrical lines closest to the gnomon’s shadow. When the shadow does not fall exactly on a hour line, you can read the half-hours and quarters with close approximation by ideally subdividing the space between two hour lines in two or four parts. The date can also be read by referring to the Zodiac signs and the start of the months marked out along the meridian line.

© 2018 – 2022 Museo Galileo – Istituto e Museo di Storia della Scienza
Piazza dei Giudici 1 · 50122 Firenze · ITALIA
tel. +39 055 265 311 – P.I. 01346820481

HORNIMAN MUSEUM . LONDON . ROMAN SUNDIAL

Roman Sundial . Horniman Museum . London

The HORNIMAN MUSEUM in South London is a wondrous place for people of all ages. Few (or no) visitors will fail to find something of interest or inspiration. Click on the link to find out more (rather than have me give a lengthy description of the excellent collection).

Among the many innovative collections and installations is a brilliant SUNDIAL TRAIL that showcases 12 different and distinct types of sundial. These are dotted around the park (not all are outside). Some have an additional ingenious feature that makes them unique – incorporating morse code for an inscription, for example.

Roman Sundial . Horniman Museum . London

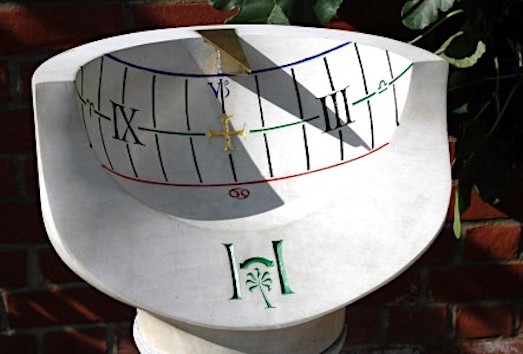

The dial was designed by John Moir and constructed by Ray Ashley. The gnomon’s shape is based upon the ‘H’ from the old Horniman Museum logo. The edge of the shadow created by the ‘H’ indicates solar time. The museum’s image below when the dial was newly made shows it in action, so to speak.

THE HORNIMAN ROMAN DIAL

Roman Sundial . Horniman Museum . London

The dial has a central cross marking the noon line. In addition, signs of the Zodiac are marked though I don’t know enough to say how they fit into the design – why, for example, pisces is below the noon line.

Roman Sundial . Horniman Museum . London

I have a second Horniman dial to write up in due course. You can find details of all the dials on the Horniman website (see link above). There is also SUNDIAL TRAIL MAP (do not open if you want to discover the dials unassisted…).

Roman Sundial . Horniman Museum . London

GSS Category: Roman Dial; Bowl Dial

All photos, Keith Salvesen; specific information / new dial image, Horniman Museum

ST GEORGES de BOSCHERVILLE . NORMANDY – a complex modern sundial

St Georges de Boscherville Sundial 1

LES CADRANS SOLAIRES DE ST GEORGES de BOSCHERVILLE

This decorative sundial – one of two – is something rather special. It is both elegant and complex, and must have taken a long time to devise and lay out accurately. It stands in the extensive grounds of the fine Abbey Church of St Georges de Boscherville in Normandy. I managed to get the last small pamphlet in the Abbey bookshop. Even then I failed to understand the sundial properly, and not simply because of my rusty but workable French. I’m not even going to attempt to describe the dial, but it was easy to photograph in detail in its picturesque setting, and I have included a shot of the explanatory plaque at the end for the science-minded.

One fact I learnt is that until WWII, France was on Greenwich Meantime. During the occupation, the Germans changed the time zone to Central European time, a practice that has remained ever since.

St Martin de Boscherville Sundial 1.1 1
St Georges de Boscherville Sundial 1.1. 1
St Georges de Boscherville Sundial 1.1. 2
St Georges de Boscherville Sundial 1.1. 3
St Martin de Boscherville Sundial 1. 1
St Georges de Boscherville Sundial 1.1. 4
St Georges de Boscherville Sundial 1.1. 5
St Georges de Boscherville Sundial 1.1. 6
St Georges de Boscherville Sundial 1.1. 7
St Georges de Boscherville Sundial 1.1. 8

GSS Category: Cadran Solaire Sphérique / Spherical Dial

All photos: Keith Salvesen

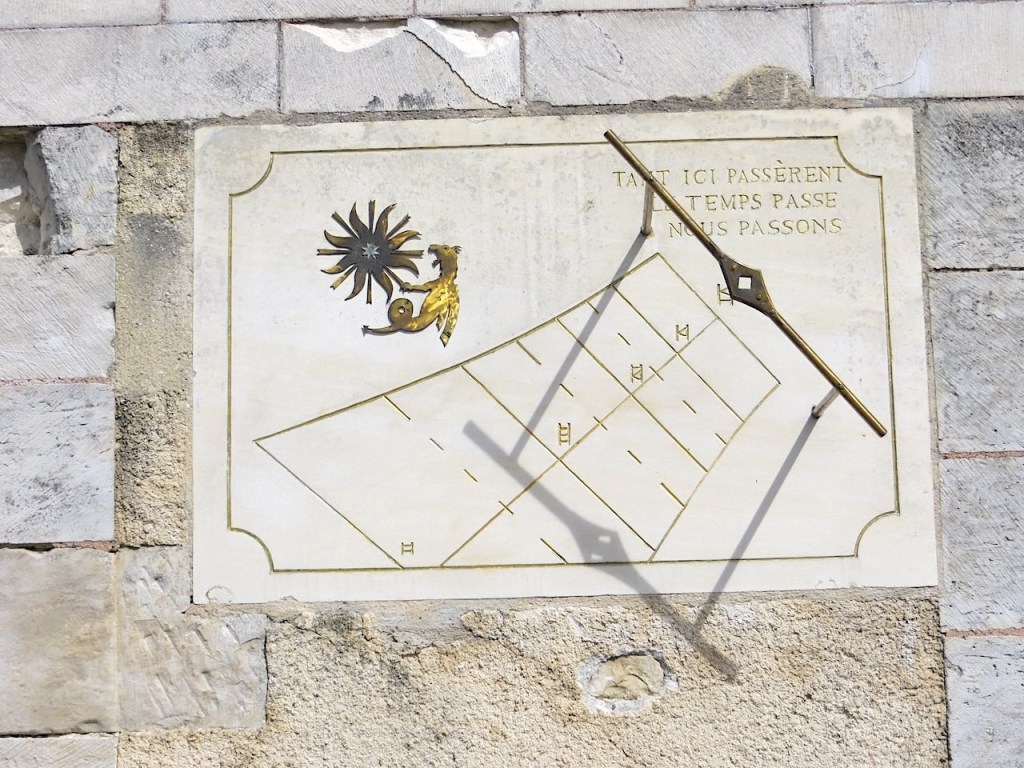

VERTICAL SUNDIAL AT ST GEORGES de BOSCHERVILLE
