GRADE II ✣ C12, C15; T.H.Wyatt restoration 1845. A fine church by the R. Avon, with plenty of interest. Focus here is on the splendid C12 inner doorway of the porch with nook shafts and scalloped capitals, and an outer order of arch lozenges, inner of horizontal chevronsBHO. See below for Church History. 5m N of Salisbury. 51.1244 / -1.8301 / SU119361
SCRATCH DIALS
DIAL 1
Dial 1 is by the capital LHS of the door, and quite easy to overlook. Weathered and damaged, with 3 lines visible within what remains of a double circle. Filled gnomon hole.
DIAL 2
Dial 2 is RHS on the arch of the doorway, and much easier to read. A morning dial with 4 clear lines from 9 (terce) to noon, and another fainter line earlier. The random line LRQ was evidently added some time later. Filled gnomon hole and remnants of a narrow double circle, as with dial 1. Perhaps this dial was cut as a replacement for dial 1 which certainly seems earlier; they could hardly be contemporary.
DIALS 1 AND 2
CHURCH HISTORY
VERTICAL DIAL (CHANCEL BUTTRESS)
The dial is on a south buttress. Motto across the top in angular lettering reads: ‘Tempus Fugit’. Upright Arabic numerals – 10, 11, 12, 1, 2, 3, 4, 5 and 6 still just visible. Divided to 5 mins? Three-dot half hours (remnants of fleur-de-lys? Square frame with wide border, inset into stone of second buttress RHS of south porch. Needs restoring soon if it is to be saved. Would have been quite a good dial originally BSS
The most recent report was in 2005. Given the details mentioned above, the prediction of further deterioration has sadly come to pass.
GSS Category: Scratch Dial; Scratch Dial within porch; Vertical Dial
GRADE I ✣ Origins pre-date 1159 building; some C12 features; S chapel c1280. Mainly late C13 to C15; 1860 restoration by Wyatt. Fine Giffard Chapel. Described 1850 (Hoare) as one of the most interesting parish churches in the Vale of Wily [Wylye], and its architecture has been very little altered since the death of Bishop Giffard in 1301. W window described by PEV as a tour-de-force. Painted pews. Turkeys feature in the church decoration – for why, see below. 4m NW of Wylye. 51.1553 / -2.0722 / ST950395
DIAL 1
The dial is prominent on the lower right corner of the transept window. It is cut into the attractive red stone. At some time it was inverted, along with the stone above it. It’s an assertive dial, unlikely to be missed. There are 9 lines, with the noon having a pock close to the gnomon hole, then extending onto the stone below. A reverted image is shown below.
REVERTED DIAL
DIAL 2
BSS records 2 other scratch dials. Examining the separate but very similar entries for these 2 dials, it seems near-certain that they are in fact one and the same. The notes for one includes worn, error, omission, query. Report date uncertain. They differ as to whether there is a large gnomon hole or none at all; and whether there may be a circle. As it happens, I could only find one plausible candidate in the given location, so I will leave it at that.
The dial is difficult to interpret, not least because it is so eroded. The larger image below hints at a noon line, with perhaps a trace of a line at XI and on the pm horizontal. There is a rough curve LRQ but no certainty that it was ever part of a circle. I doubt that the 3 shallow circular dents relate to the dial. A simple dial, then, but of use (in that location) to those passing after daybreak.
St Mary . Boyton . Wilts – Hypocrite Stone in the aisle
SIDE NOTE William Strickland, builder of Boyon Hall, was said to have brought the first wild turkey to Britain from America in the late 16th century. As a result, there are carved and painted turkeys all over the church; most notable is the lectern, shaped like a turkey instead of the traditional eagle. (David Ross – Britain Express BE)
GRADE II ✣ C12 traces (BHO); then C13 on; C15 tower; Wyatt rebuilding 1860s. A few early features remain. An interesting, well-kept building and churchyard. 6m NW of Salisbury via Wilton. 51.1079 / -1.8758 / SU087342
DIALS
Two scratch dials are recorded with descriptions, with a third mentioned in tentative terms (BSS). When I visited, the only dial I found didn’t match the descriptions nor was it in any location mentioned. There were a few quite plausible gnomon holes but none had any additional dial-ish features, not even eroded traces. Clearly I need to return and try harder next time I’m in the area.
DIAL
A very basic dial with the gnomon hole in the mortar line. Two clear lines either side of noon, possible terminal pocks (if so, perhaps later additions). LLQ there’s a faint trace of a third line.
The dark blue circle in image 1 below marks the dial above; the pale blue circle marks image 2. Image 3 is one of several examples that, apart from holes, have no visible dial characteristics.
GRADE I † C13 origins; C14, C15 development; extensive restoration 1873 (Carpenter). C12 font. 3 scratch dials; and a fine Millennium dial LINK. 10m NW of Salisbury. 51.1363 / -1.9493 / SU036374
DIALS
All Saints is unusual in having 3 dials of very similar design, without the often-found stylistic developments on churches that have more than one dial.
DIAL 1
The most complete dial in terms of information for the passer-by. A complete circle with several lines clear and faint, some with a terminal pock. The noon line extends beyond the circumference, with the lines RHS indicating an afternoon dial.
DIAL 2
The dial’s circle is clear and the gnomon hole is large (with signs of recent enlargement). Apart from that only the faintest traces of lines remain, presumably lightly cut initially and eroded over the centuries.
DIAL3
A partially obliterated circle; a gnomon hole; hints of 3 pocks LRQ. Perhaps we can deduce that this was the first of the dials. Of course, even a stick in the centre hole would give a fair idea of the time of day to the passing parishioner.
GRADE I † Early Church recorded at HestrebeDB. C12 origin as collegiate church; continuing development to C16; mid-C19 restoration (Butterfield). C13 work of particular note. One of the excellent churches to be found in the Wylye valley between Steeple Langford and Sutton Veny. 51.1821 / -2.1086 / ST925425
DIAL
The dial is on the SE face of the angled buttress at E end (by the green tank). It is a fine example of a dial on which all the lines have terminal pocks. At some time it was inverted, and I have shown it reverted below. I cannot find any record of it, BSS or elsewhere.
REVERSION
This dial is primarily a morning dial, with lines marking (in clock terms) the 5 hours from 8 to noon. The deeper lines marking 9 & 10 correspond to the morning Mass time Terce. Possibly, the fainter line LRQ indicates None, another significant time during the day’s observations. In all there are 9 visible lines with terminal pocks during daytime, and a hint of a line above the horizontal in URQ. The vertical ‘midnight’ groove above the gnomon hole can be discounted as part of the dial, I think. It is certainly out of keeping with the carefully thought overall design. Also, it doesn’t reach the gnomon hole.
PLAUSIBLE DIAL?
I noticed this patterned stone and photographed it as I walked past. I would very much like it to be a ‘pock-only’ dial. There is certainly a hole close to the centre of the stone, with a pattern of small holes that look crudely drilled, approximately forming a perimeter. Probably I am overthinking this.
CHURCH MARKS
Here is a selection of church marks – masons’ marks, consecration cross; ‘pilgrim’ crosses; graffiti; a small dial-like design that merits further investigation.
GRAFFITI INCLUDING RITUAL PROTECTION SYMBOLS
GSS Category: Scratch Dial; Mass Dial; Church Marks; Consecration Cross; Masons’ marks; Pilgrim Cross; Graffiti
An extraordinary and diverse collection of dials on a lovely church that is a short walk from the dreaded A303. The village is the first traffic choke-point on the road W of Stonehenge. Who would guess, inching forwards in your car where pedestrians daily take a life-or-death decision when to cross, that a lane to the south offers such a rich treat?
DIALS
St Peter is a multiple scratch dial church. Estimates vary of precisely how many: perhaps 8 or 9, depending on individual interpretation. BSS records 4. The range of plausibility covers all bases: obvious dials, probable dials, possible dials, not-a-dials. Some candidates – whole or partial – may simply be decorative. Others look promising but are unlikely to work as dials in design or (present) position. I have grouped various candidates, accepting that my choices may be lightly contentious. Note that I have mostly not specified locations. I started (2 visits) on the SE corner, if that helps. I have given links below with helpful details. Anyway, a multi-dial church is always a pleasing challenge for locating them.
DIAL 1
A simple dial on a RHS window jamb, consisting of 2 circles and a central gnomon hole. The double rings, badly eroded, look compass drawn. There are no visible lines, nor any pocks.
DIAL 2
On a LHS window jamb, a plugged gnomon hole with very little else remaining. Enlarging the image reveals a faint trace of what might once have been a circle; and the ghost of a noon line.
DIAL 3
A much clearer dial on a quoin stone, though quite badly eroded. Originally it was presumably a complete circle of lines with terminal pocks. Only about 12 lines and 9 pocks are visible.
DIAL 4
Another quoin stone dial, with 2 lines emerging downwards from the gnomon hole, diverging either side of noon. L line possibly has a terminal pock; R line is badly eroded, barely visible. It’s hard to make sense of the bent grooves LLQ – somewhat pointless as parts of a dial.
DIAL 5
Dials 5, 6, and 7 are collected together in corner, one above the other. Dial 5 is at the top. Heavy-handed repairs have been carried out in this area. The gnomon hole is in the mortar line, with 4 defined radials and traces of 1 or 2 more. There’s a hint of an arc LRQ, perhaps the remains of a semi-circle.
DIAL 6
The lowest dial of the 3. Again the gnomon is in the mortar line. It looks as though the dial stone must have split vertically at some time. 3 lines LRQ, the noon line less deeply cut. The single line LLQ corresponds to the Mass time Terce.
DIAL 7 (?)
Dial 7 is (as others note) a doubtful dial, and I share reservations. It would certainly work in a most rustic way, with a stick in the large hole and the smaller indentation below denoting noon. However, in a multi-dial church one might expect something rather more complex or decorative..
DIAL 8 (?)
Again, this design is taken to be a dial, which it may well be. I’ve never seen one quite like it, with a short arc at one side with no sign of a semi- or complete circle. The large deep hole has a minimal cut at noon, hardly a call to prayer. I wonder if this is in fact apotropaic in purpose, a protection symbol to ward off evil.
DIAL 9 (?)
I originally discounted this as a dial but reviewing photographs made me look more closely. The slapped-on filler helps to the extent that it suggests a gnomon hole in the mortar line that was large enough to need filling. There is a faint near-vertical that might be a noon line with a pock to mark it; and a hint of a line with a pock at roughly 9 / Terce. Doubtful.
SEMI-CIRCLES
Although these semi-circles are generally included in mentions of the dials of St Peter’s, I have reservations, in particular for the double circle in the fine archway. It is very large for a scratch dial, and the church is quite small to require such a one. There are no marks – radials, pocks, numbers – to suggest use as a dial. I wonder if is an example of simple compass-drawn decoration on a large scale. Also the blocked door and its arch are set back, with a buttress in front on either side. The position is a most unlikely one for enabling the community to mark the passage of the day.
This double semi-circle is more dial-ish, but is still quite large, with (it seems) damage but no relevant dial marks. Too small in diameter to be the other half of the semicircle above.
A segment of a single circle on the edge of a clean-edged stone, clearly re-sited at some time. If a dial, one would expect there to be lines / pocks in the lower half ie from 6 to noon.
NOT-A-DIALS
I include these without conviction that any one of them is a dial. The top one, similar to Dial 8 above and on the same kind of stone, is simply a shallow hole. There’s no hint of another relevant mark.
A very helpful analysis by the Parish Council of the dials of St Peter is recommended HERE
GSS Category: Scratch Dial; Mass Dial; Multiple Dials
All photos: Keith Salvesen; Winterbourne Stoke PC (A. Shuttleworth)
GRADE II* † C13 origins; C15 expansion; 1846 rebuilding by Wyatt. Wonderful pulpit. Well positioned beside an excellent pub to quench congregational thirst after righteousness. An ideal peaceful country church, despite being just S of the hectic A303 raceway. 51.1389 / -1.9898 / SU008377
DIAL 1
I very recently featured the inverted dial on the nave wall, tucked away quite low down on E side of the buttress.
Almost immediately I was contacted by Lee Baines, pointing out that I’d missed a mass dial in poor condition (but at least right way up) with standard three radials in SW quadrant. By chance I was passing Wylye yesterday, and I am pleased to be able to correct the omission so soon.
DIAL 2

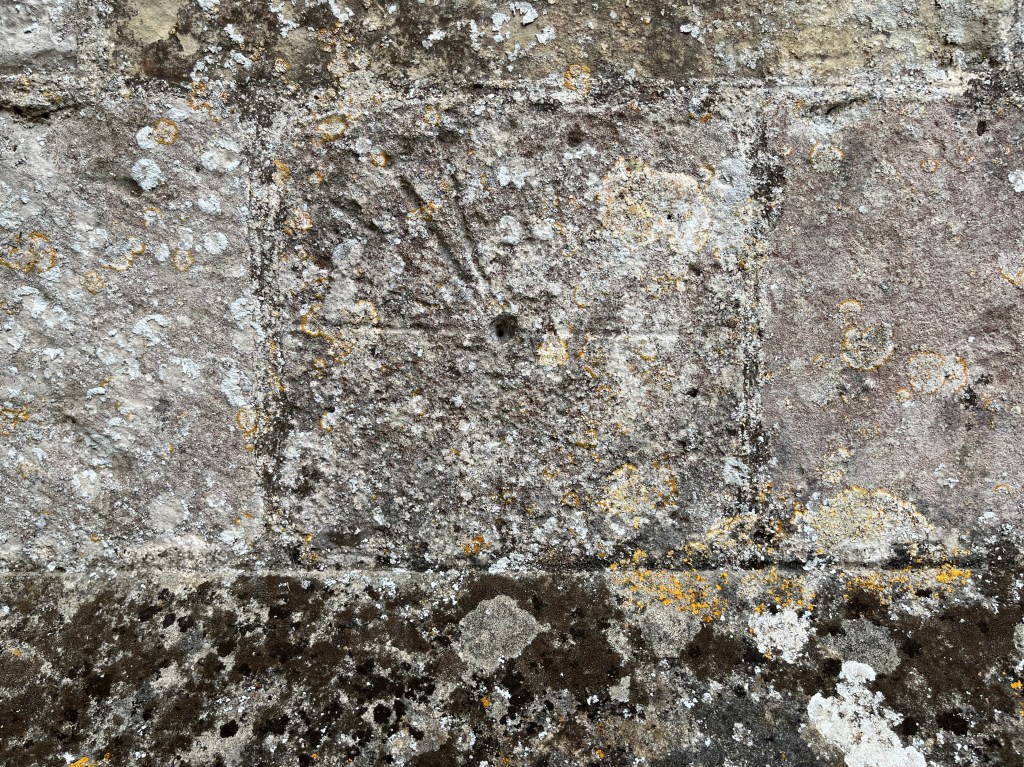

The dial is a good example of a less common feature. The joint between 2 stones acts as an emphasised noon line, with the gnomon hole in the mortar line above it. The mortar line doubles as a 6-to-6 line. There are 3 lines in LLQ, neither straight nor accurately leading to the gnomon hole. The deeper cut line corresponds approximates the Mass time Terce. The overall lack of finesse of this rustic dial suggests that it is rather earlier than Dial 1.
GSS Category: Scratch Dial; Mass Dial
All photos: Keith Salvesen; many thanks to Lee Baines for pointing out my omission
GV II* † C12 origins; C13 records; C15; restorations 1833 J Davis, 1861 W Hardwick; and 1912. Now redundant. Cast-iron plaque records 1833 rebuilding. Surprisingly large for a small community hidden away on the banks of the Wylye river (nb close to a very busy A303 intersection; check a map or you may miss the little side-road and could be going back and forth for some time. Close to Wylye. 51.146 / 51°8’45″N / -2 / 2°0’0″W SU000385
DIAL
Part of the original dial stone was at some stage relocated and reused as a building block in a most unexpected place. You will find it N side, low down on the side of a buttress, facing W. In its working days, it must have been a fine marker of the passage of the day.
From the visible fragment one can tell that the dial was almost certainly cut over 2 (or more?) stones. The double circle – faintly seen RHS – gives an idea of the overall size.
Rotation of the stone 90º anticlockwise reveals well-defined XI – noon – I lines
GV II* † C13, C15, 1863 restoration by T.H. Wyatt. PEV notes Very well preserved C9 Saxon cross shaft with fine carving… against north wall of chancel. Worth visiting close-by St Mary (no dial), an agreeable church. 7m SE of Warminster. 51.1586 / -2.0503 / ST965399
DIAL
An enigma: the dial recorded for St Peter gives the details shown below. However at the position and height specified is a single hole drilled near the centre of the stone. There are no markings whatsoever that I could make out. I looked at similar locations on the S side without success.

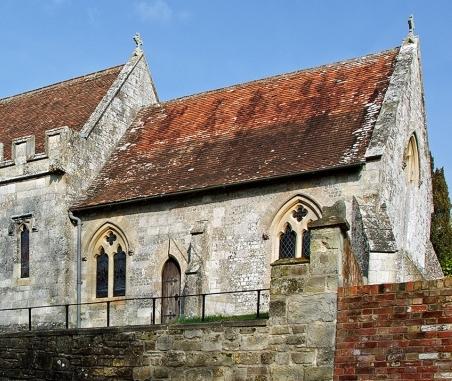

Chancel, S wall, to R of priest door. Height 1.4m. Worn. Dial (Norman?) with tides, with duodec., sometimes both. Mason-cut or roughly scratched
I realise this is a disappointing post. On balance I decided it would be worth writing up. This visit was part of a 3-day project with the Wylye Valley churches. I also failed to locate the dial at nearby Knook; and I didn’t get a full score for the multiple dials noted at Stockton (17) and Sutton Veny (9). There were a couple of new finds to even up the score. Not all older records are accurate; then again, neither am I… Any guidance with the dial(s) on this Church would be welcome.
GRADE II* † C13 origins; C15 expansion; 1846 rebuilding by Wyatt. Well positioned next to an excellent pub for congregational thirst after righteousness. An ideal peaceful country church, despite being just S of the hectic A303 raceway. 51.1389 / -1.9898 / SU008377
Addendum: just after posting this, I was told of a dial I had missed (thanks, Lee). By coincidence we were driving past Wylye the next day. Separate post for Dial 2 HERE
DIAL

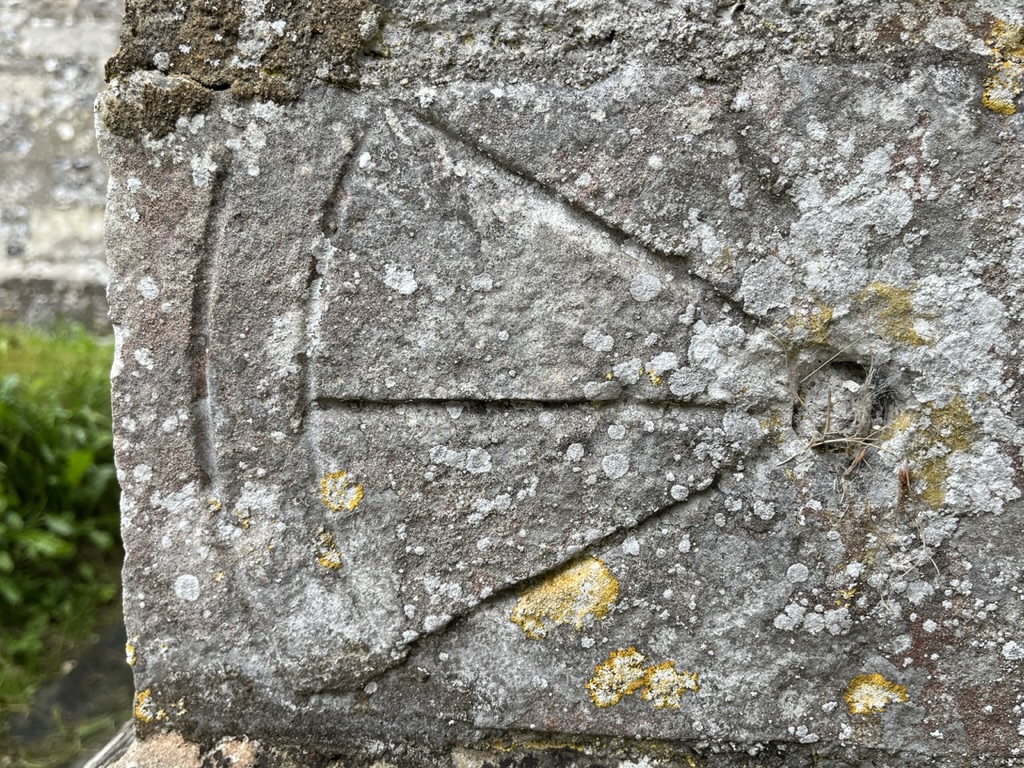

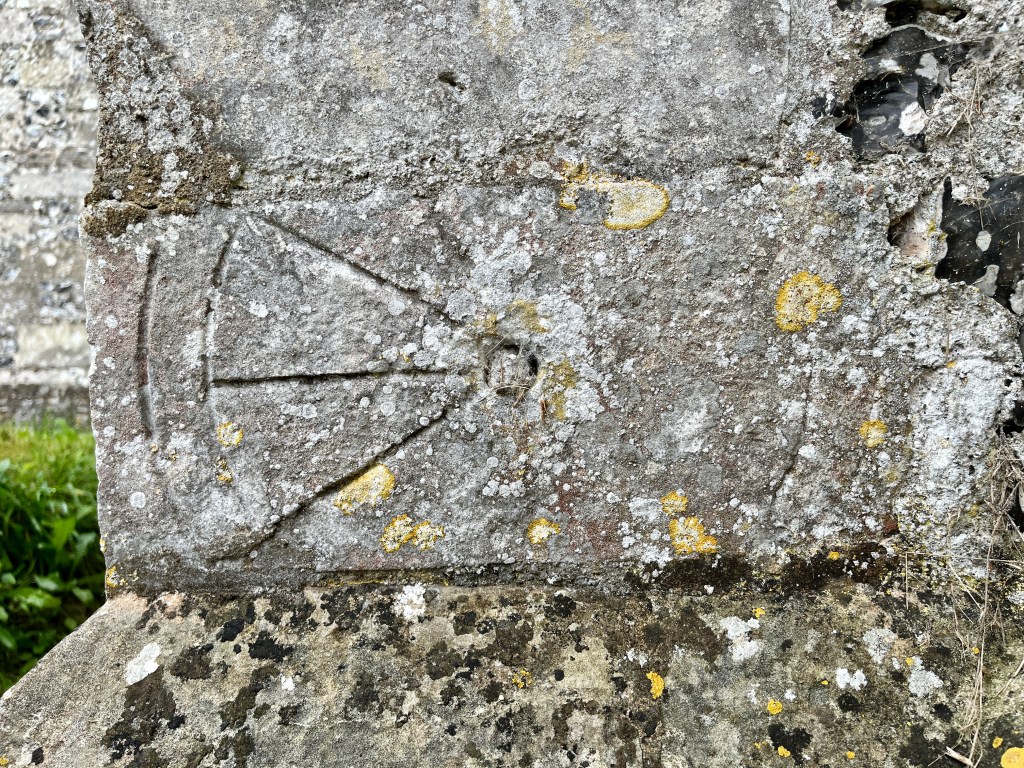

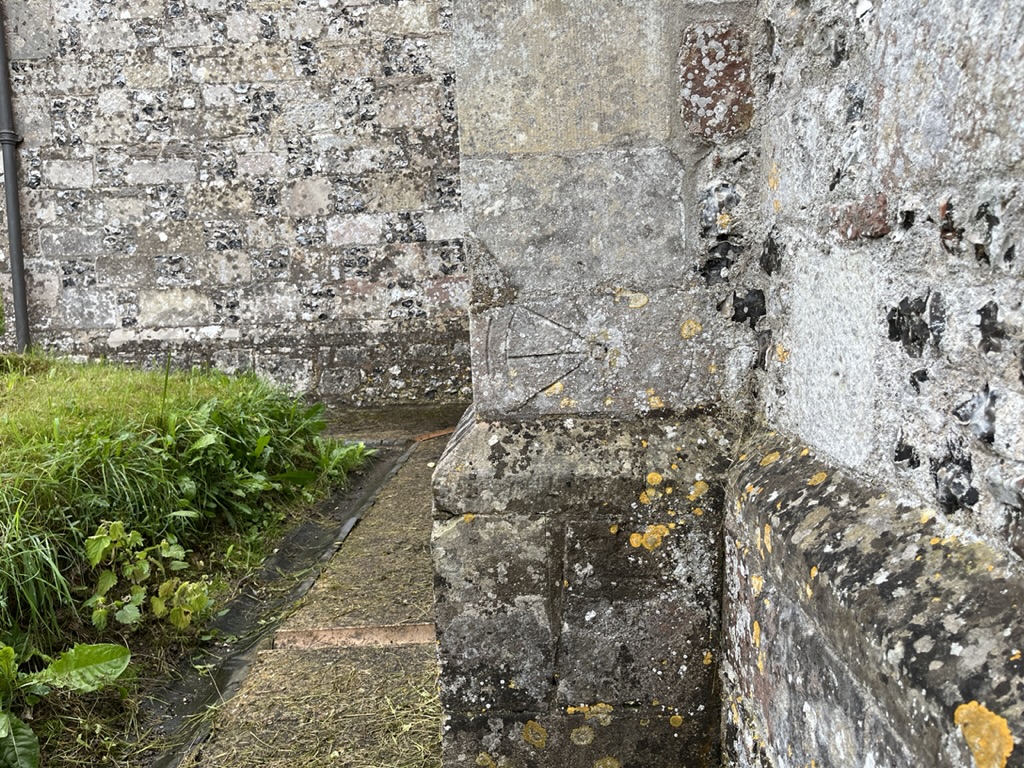

The dial is on the nave wall, tucked away quite low down on E side of the buttress where the tower joins the nave. It is upside down, suggesting that the stone was reused during building work – a plausible theory is that inversion indicated that a dial had outlived its original purpose.
REVERTED DIAL

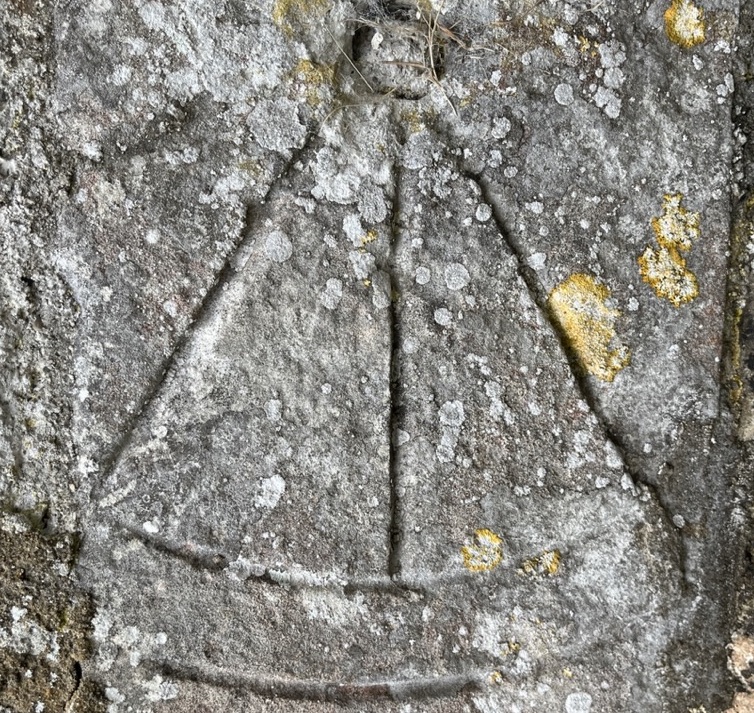

Assuming a 180º turn, this is an afternoon dial, with the lines in the quadrant R of the noon line indicating the important part of the day for observance corresponding with the canonical hour None.
