KINGS BROMLEY . STAFFS . ALL SAINTS – Scratch Dials

Published on March 12, 2024March 13, 2024 by Rolling HarbourLeave a comment

All Saints Church . Kings Bromley . Staffs (Humphrey Bolton, Geo CC)

ALL SAINTS . KINGS BROMLEY . STAFFS

GRADE I † Late C11 nave, with remnants; C14 additions, C16 Perp W tower, C19 work. An attractive church in a pretty setting. 3 scratch dials are recorded. 5m N of Lichfield. 52.7507 / -1.8206 / SK122170

DIALS

Dial 1 and Dial 2 can be considered together, because Dial 2 is recorded as being superimposed on Dial 1. It is not uncommon for there to be some overlap between dials, but not to this extent. One might expect a second dial to be cut on a different stone so that it stands out as superseding the first. But perhaps it is the other way round – a rather basic dial over-cut by a more sophisticated one centered on the dial stone.

✣✣✣✣✣

DIAL 1

BSS regards this unusual dial highly. It is located on the buttress at E end of the nave. There are eroded remnants of two concentric circles RHS. Notes Worn. Important, poss. unique. Dial like conventional sundial. Double dial, see 2

The gnomon hole is in the centre of the dial stone, and is angled down. The confusion with Dial 2 makes it difficult to apportion the badly eroded lines

✣✣✣✣✣

DIAL 2

Dial 2 has an oblong gnomon hole just below the mortar line, slightly surprisingly because it prevents the mortar line from acting as the horizontal. It, too, is slanted downwards and it is hard to think how it could have held a peg, rod, or stick. In the confusion of the linear scratchings, I reckon 2 lines LHS come direct from the hole; and possibly 2 RHS.

✣✣✣✣✣

DIAL 3

Dial 3 is on the S wall of the Chancel, under the first window. BBS notes On the verge of destruction. The image in the records is quite old. I have added a B&W version that is a bit easier to read.

GSS Category: Scratch Dial; Superimposed dial

CREDITS: Erika Clarkson, Dials 1 & 2 (VG sideways shots); BBS record; header as noted

TATENHILL . STAFFS . ST MICHAEL & ALL ANGELS – 2 Scratch Dials

Published on May 13, 2022 by Rolling HarbourLeave a comment

ST MICHAEL & ALL ANGELS . TATENHILL . STAFFS

GRADE II* † C13 core, much enlarged C15 inc addition of tower. Restoration late C19 (Bodley). An attractive mixed sandstone church typical of the region. 5m SW of Burton-on-Trent. 52.7959 / -1.6967 / SK205220

DIALS

There are 2 dials on the S side of the church, both close to nave windows. Dial 1 is already recorded; I can find no reference to dial 2.

DIAL 1

A simple circle dial with a style hole that has been enlarged at some time (quite recently by the look of it). There is a noon line, with lines for 11, 1, and 2 either side. The dial has a pleasing greenish coloration.

DIAL 2

Dial 2 has 3 distinct lines radiating directly from the style hole. 2 terminate in dots. There’s no doubt that this is a scratch dial. There are other dots, apparently deliberately made, that may roughly mark a circumference but it’s hard to tell.

Because of the configuration of the dots I wondered – if the stone was relocated at some time – how the dial would look if rotated 90º. There’d be an emphatic noon pock below smaller pocks that might form a rough boundary. The 3 lines might then be markers for afternoon service(s). Maybe.

St Michael . Tatenhill . Staffs – Scratch Dial 2 rotated

GSS Category: Scratch Dial

All photos: Erika Clarkson, with thanks again for her researches in Staffs

WYCHNOR . STAFFS . ST LEONARD – Scratch Dial

Published on January 27, 2022February 7, 2022 by Rolling HarbourLeave a comment

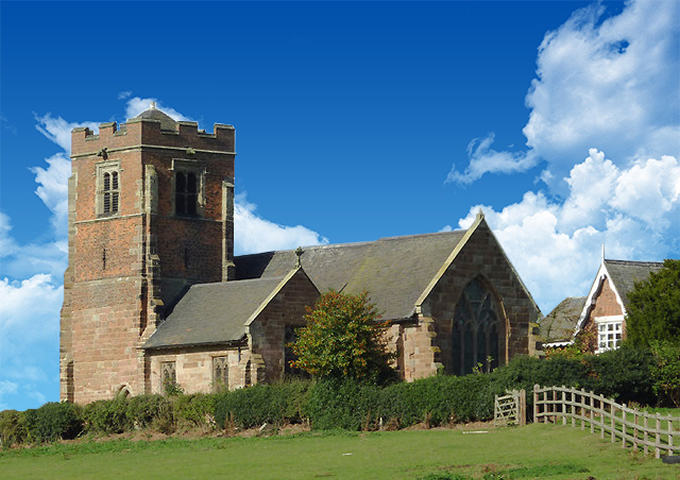

WYCHNOR . STAFFS . ST LEONARD

GRADE II* † C12 origins, mainly C14, C17 work / expansion. A hamlet with a fine red sandstone church. Hwiccenofre in Saxon times, Wicenore in DB. Church details BLB. NE of Lichfield near Alrewas, close to R Trent. 52.742 / -1.7394 / SK176160

DIALS

St Leonard has 3 recorded scratch dials, one of which features here along with an arguable but doubtful dial. The other 2 official dials will be covered in a separate post. The neighbouring village, Alrewas, has a church (All Saints) also with 3 recorded dials. Two are featured HERE. The third will be featured in due course.

St Leonard . Wychnor . Staffs – Scratch Dial

Prominent on the easternmost buttress of the aisle with a sizeable style hole (a later enlargement of the original?). Cut on black stone and eroded. 4 (5?) broad lines cut in lower R quadrant; other possible traces. An afternoon dial – perhaps locally the most significant part of the canonical day, marking the Masses sext and none: the 6th (noon) and 9th hours.

BSS additionally notes: 2 pocks in lower R quadrant, & 2 in upper R quadrant at much larger radius. The archive image below shows (lower R quadrant) a terminal pock under the noon line (not uncommon) and another next to it (unusual?). 2 pocks are visible upper R, but whether related to the dial is uncertain.

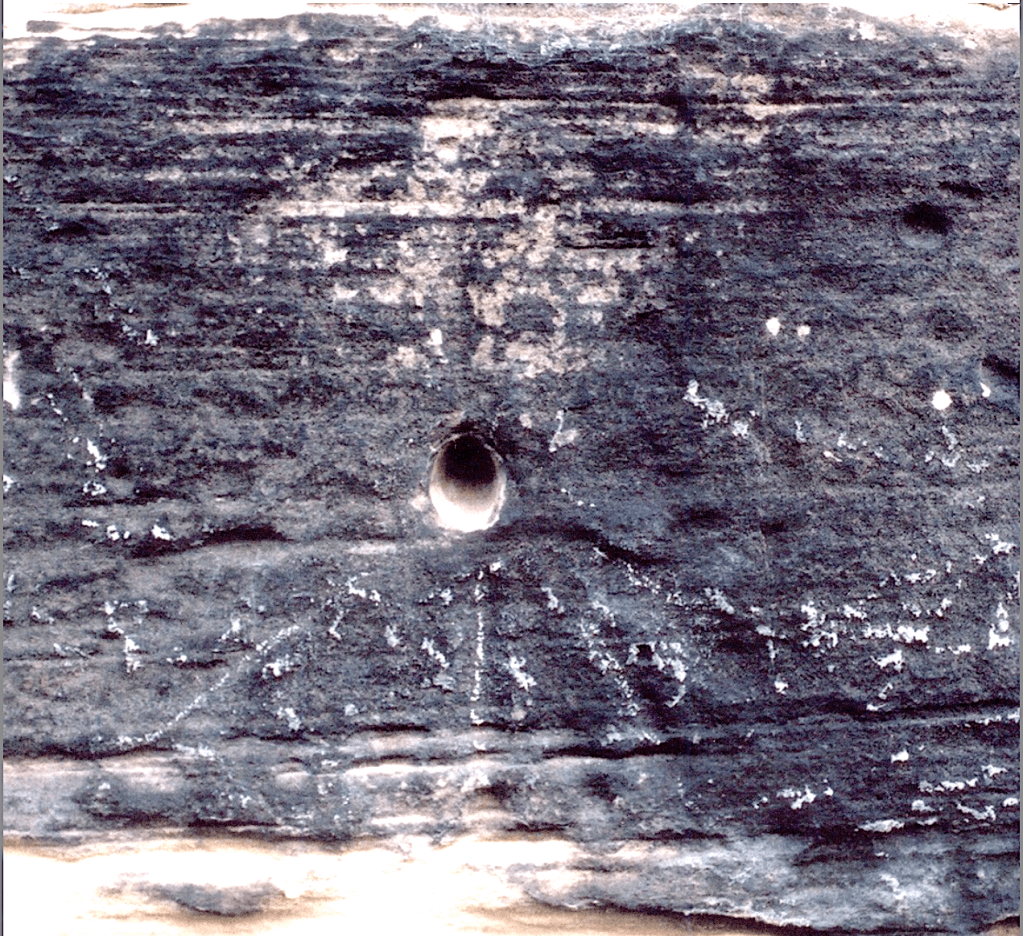

St Leonard . Wychnor . Staffs – Scratch Dial (BSS archive)

PLAUSIBLE, DOUBTFUL, OR NOT A DIAL?

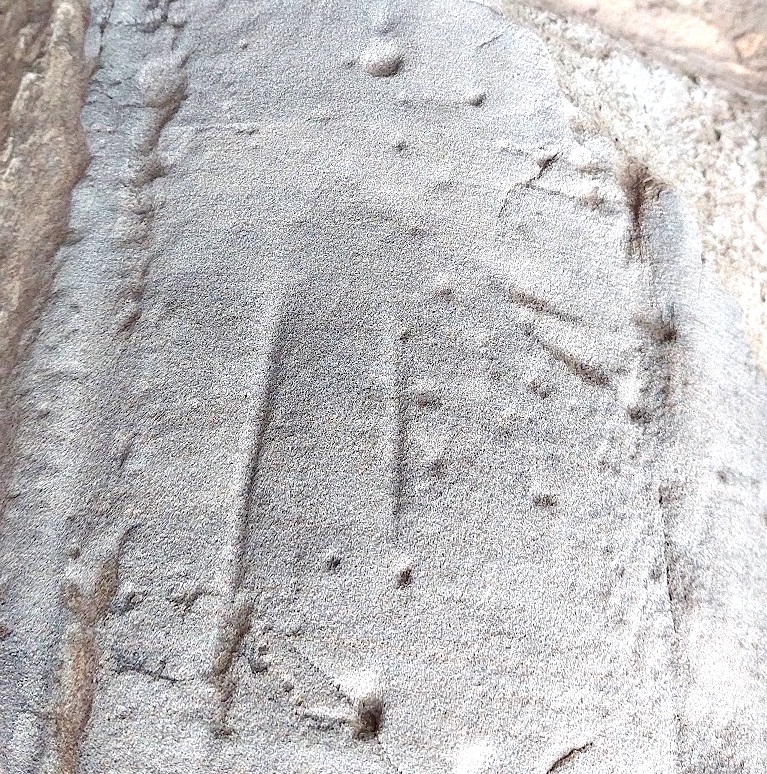

*St Leonard . Wychnor . Staffs – doubtful scratch dial*

Image 1 – the original – displays marks that resemble a relocated and inverted dial. Images 2 & 3 show a 180º rotation and close-up. It looks quite plausible, with apparent dial features including extended noon line, a feasible style hole, some pocks that may be part of the design. Also, the focus is on the lower R quadrant, perhaps reinforcing the ‘afternoon Mass’ suggestion above. But overall not quite right, and doubtful at best.

NOTE The Pilgrim Way Church Trail, 14 miles long, links six churches dated from Saxon to Victorian leading to Lichfield Cathedral following an an ancient path. As the excellent PWCT site explains: you can walk, cycle or drive the trail and the three booklets give clear instructions and helpful photographs

GSS Category: Scratch Dial

Photo credits: Erika Clarkson – dial images; Peter Ralley – header image of St Leonard’s; BSS archive
