Norfolk Scratch Dial – GAUDIUM SUB SOLE . SUNDIALS . MEDIEVAL TO MODERN

All Saints . Burnham Thorpe . Norfolk (Explore West Norfolk)

GRADE I ✣ First record DB 1087; first rector 1229. C13 expanded C14 & C15. The birthplace of Horatio Nelson; baptised in the C13 font. The gradual development reveals much of interest, enriched by the Nelson connection. A fine North Norfolk church. 52.9412 / 0.7549 / TF852417

DIALS

All Saints has 2 large clear dials on the same buttress. Contributor Erica Clarkson found an unobtrusive third dial on a quoin stone, not otherwise recorded as far as I can see.

All Saints . Burnham Thorpe . Norfolk (EC)

DIAL 1

A fine dial low down on the buttress. There are 3 pocks above the the gnomon hole in the mortar line. Below is a semi-circle of lines all ending in pocks, the noon one being largest. The well-defined lines cut LLQ suggest that morning / None was the main hour for observance.

DIAL 2

Dial 2 has 12 lines radiating from a plugged gnomon hole. There are no pocks. There’s minor puzzle: which is the noon line? The deepest cut line is the seventh line from the LHS horizontal rather than the sixth, and slightly offset to the right. In addition, 3 or 4 lines seem cut off at the mortar line, suggesting a rearrangement of the stonework at some time. (It might also explain why Dial 1 is so low down on the buttress).

DIAL 3

A simple time marker centred in the dial stone, from an earlier period. 2 lines are visible L side. Probably that was all that was required in (say) C13, in simpler times and before the church had developed. The position of the lines suggests that None was the (main) service time.

GSS Category: Scratch Dial; Mass Dial; Buttress Dial

Credits: All photos Erika Clarkson with thanks, except header as shown

St Edmund . Acle . Norfolk (π ChurchCare / Keltek)

GRADE I † Norman traces; C13, C14; mid C19 restorations. Nave roof thatched; round W tower with octagonal bell stage; high porch; early font. A fascinating and most unusual building to admire, both the exterior and interior. 12m from Norwich. 52.6372 / 1.5474 / TG401102

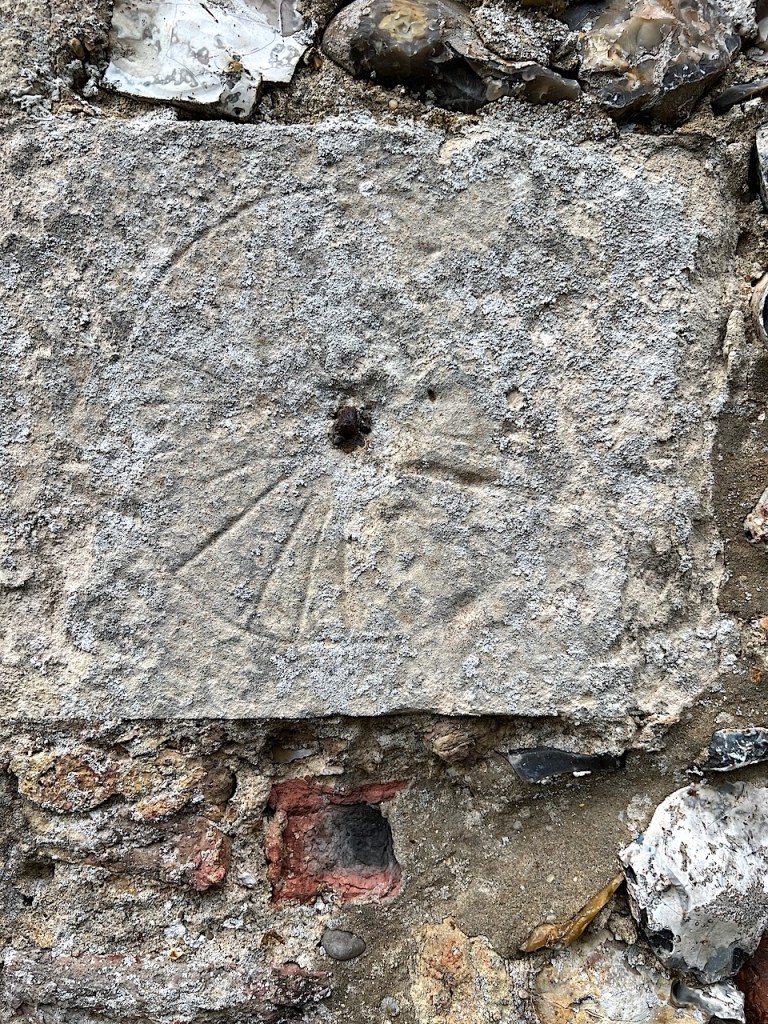

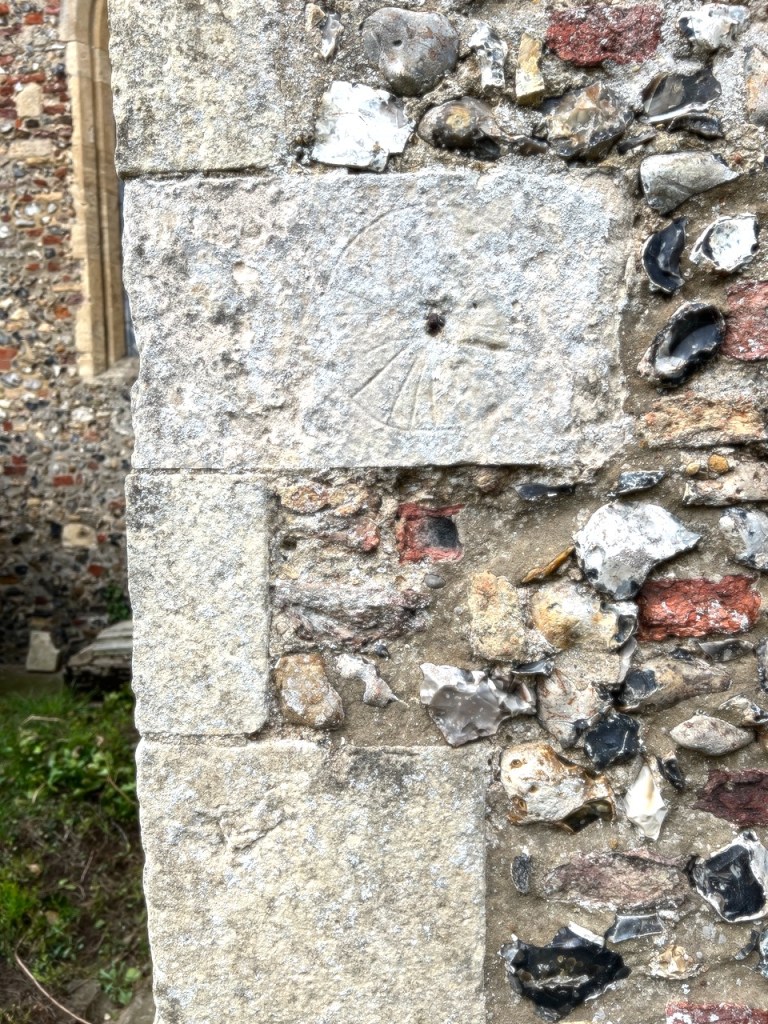

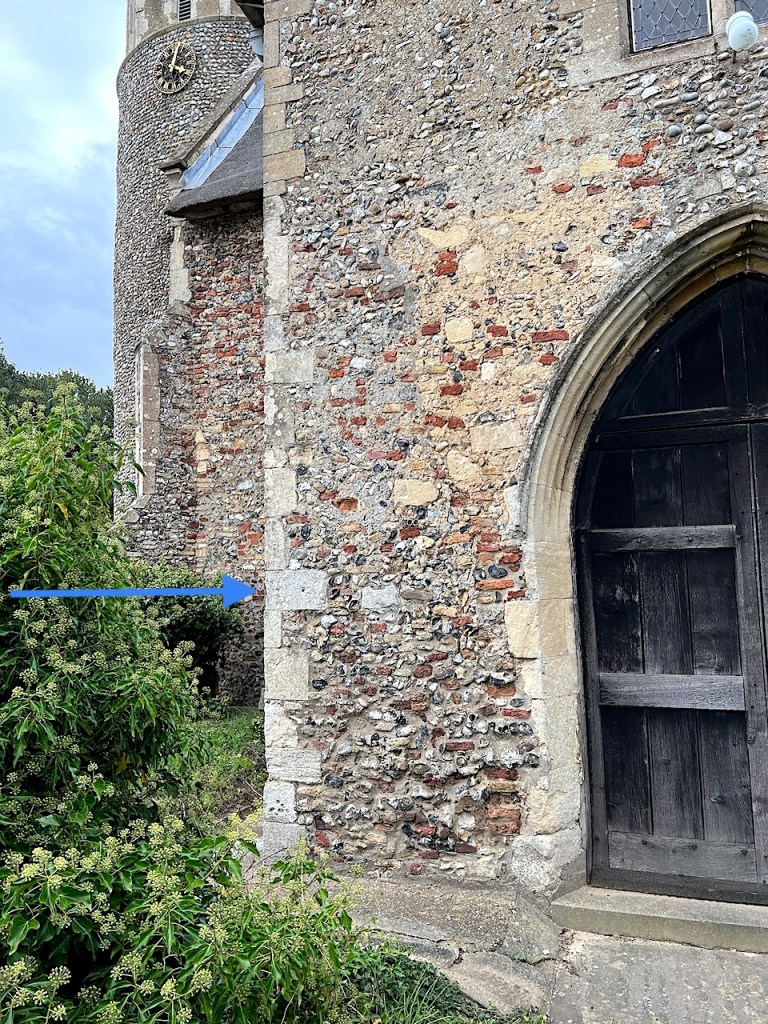

DIAL

A fairly conventional encircled dial on a quoin stone on W side of the porch. The forenoon is well-marked, evidently the most important part of the day for religious observance. The emphatic gouge at (very roughly) Nones is presumably not contemporary, being very much at odds with the more carefully incised lines. Possibly it marks a later change of the principal Mass time to the afternoon (a new incumbent?). There are ± 8 lines but erosion and damage prevents an accurate count.
